Tractors > International Harvester > Cub 154 Lo-Boy
      -Brand search:


    International Harvester Cub 154 Lo-Boy

    International Harvester Cub 154 Lo-Boy tractor photo
    1968 - 1974
    Compact Utility tractor
    Next model:International Harvester 185 Lo-Boy






    Production:

    Manufacturer:International Harvester
    Factory:Louisville, Kentucky, USA
    Original price (USD):$2,400 (1974)


    International Harvester 154 Lo-Boy Engine:

       International Harvester 1.0L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:8 gal [30.3 L]
    Hydraulic system:1.75 gal [6.6 L]


    3-Point Hitch:

    Rear Type:I (optional)


    Power Take-off (PTO):

    Rear PTO:independent
    Clutch:mechanical dry disc
    Rear RPM:1600 (counter-clockwise)


    Dimensions & Tires:

    Wheelbase:64 inches [162 cm]
    Weight:1480 lbs [671 kg]
    Front tire:4.00-12
    Rear tire:8.3-24
    full dimensions and tires ...


    154 Lo-Boy Serial Numbers:

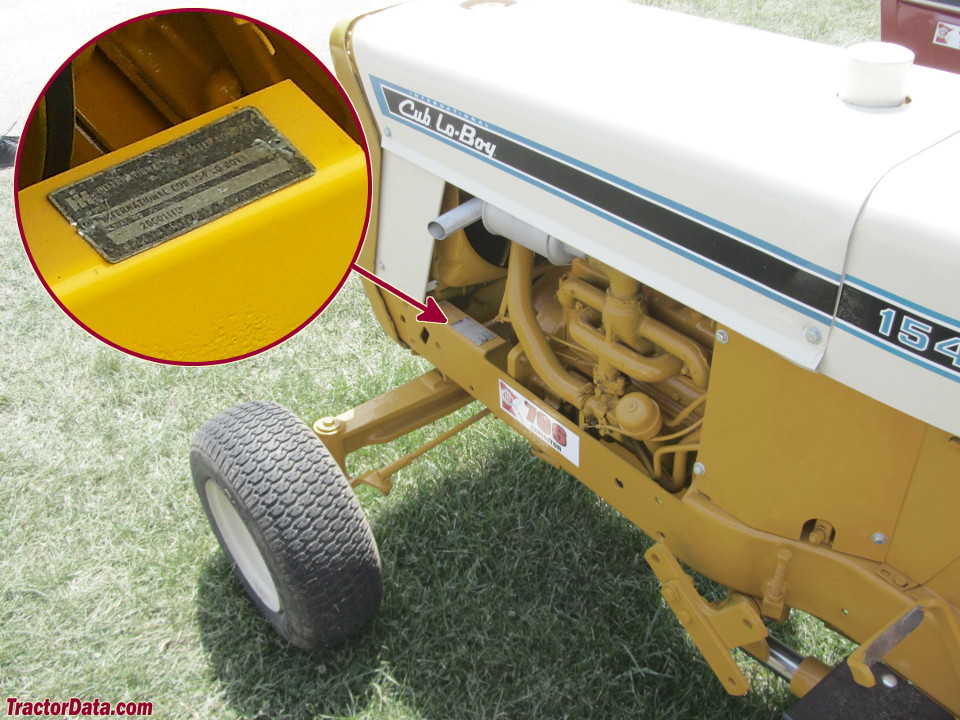

    Location:Frame, front left side
    photo of 154 Lo-Boy serial number

    1968: 3505
    1969: 3273
    1970: 15502
    1971: 20332
    1972: 23343
    1973: 27538
    1974: 31766
    Final: 36676

    how to read serial numbers...



    Links:

    McCormick-Deering Farmall Cub:


    International Harvester 154 Lo-Boy Power:

    PTO (claimed):14 hp [10.4 kW]


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:mechanical drum
    Cab:Open operator station.


    Hydraulics:

    Type:gear pump
    Capacity:1.75 gal [6.6 L]
    Pressure:2000 psi [137.9 bar]
    Pump flow:2 gpm [7.6 lpm]


    Electrical:

    Ground:negative
    Charging amps:12, 15 (generator)


    Battery:

    Number:1
    Volts:12
