International Harvester Hydro 100 Tests


International Harvester Hydro 100 tractor photo
1973 - 1976
66 Series
Row-Crop tractor
Series map:
966
Hydro 100
1066
91.0hp
115.7hp*
140.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1158

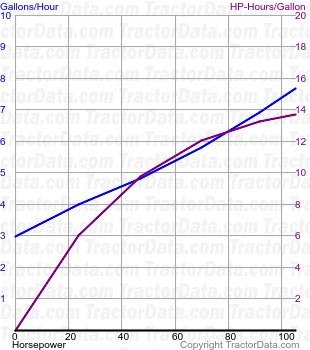

Hydro 100 fuel use from test 1158
Nebraska Tractor Test 1158
Diesel hydrostatic 2WD
May 7 - 18, 1974
Link: Nebraska Tractor Test 1158 file
PTO performance
Power at rated engine speed104.17 hp
77.7 kW
Fuel use7.6 gal/hour
28.8 l/hour
Power at rated PTO speed101.30 hp
75.5 kW
Fuel use6.8 gal/hour
25.7 l/hour
Drawbar performance
Max power78.31 hp
58.4 kW
Fuel use7.6 gal/hour
28.8 l/hour
Gear 5.5 MPH used for power test.
Max pull9,801 lbs
4445 kg
Gear 2.85 MPH used for pull test.
