    Farmall Super A - transmission

    Farmall Super A tractor photo I&T Manual: IH A, B, C, MTA, H, M, MD, Cub, MT, W4, W6, D9
    I&T Shop Manual
    1947 - 1954
    Previous model:Farmall A
    Next model:Farmall 100
    Larger:Farmall Super C
    more Farmall Super A specifications...






    Transmission:

    Type:sliding gear
    Gears:4 forward and 1 reverse
    Clutch:9-inch dry disc
    Oil capacity:4 qts [3.8 L]
     4.5 qts [4.3 L] (PTO)
     5 qts [4.7 L] (PTO/pulley)
    Speeds:

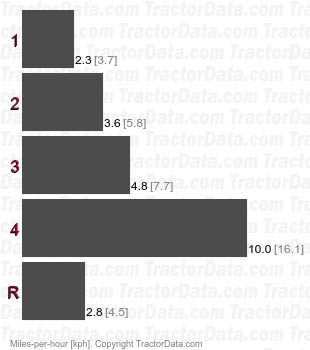

    Super A sliding gear speeds
