    Farmall B - tests

    Farmall B tractor photo  I&T Manual: IH A, B, C, MTA, H, M, MD, Cub, MT, W4, W6, D9
    I&T Shop Manual
    Production years:1939 - 1947
    Tractor type:Farm/Agricultural tractor
    more Farmall B specifications...






    Nebraska Tractor Test 331:

    Test Date:September 1939
    Engine:gasoline
    Belt power (max):16.82 hp [12.5 kW]

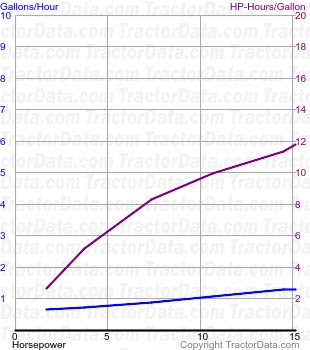

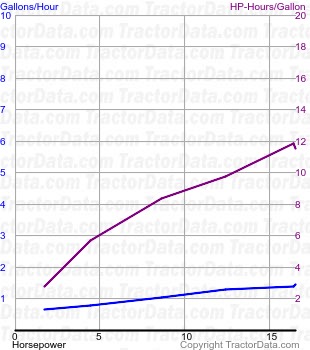

    Belt fuel use (max):1.4 gal/hour [5.3 l/hour]
    PTO power (rated engine speed):16.41 hp [12.2 kW]
    PTO fuel use (engine speed):1.4 gal/hour [5.3 l/hour]
    Drawbar power (max):16.2 hp [12.1 kW]
    Drawbar pull (max):1,794 lbs [813 kg]


    Nebraska Tractor Test 332:

    Test Date:October 1939
    Engine:kerosene
    Belt power (max):15.36 hp [11.5 kW]
    Belt fuel use (max):1.3 gal/hour [4.9 l/hour]
    Drawbar power (max):12.02 hp [9.0 kW]
    Drawbar pull (max):1,598 lbs [724 kg]
