Ford 7000

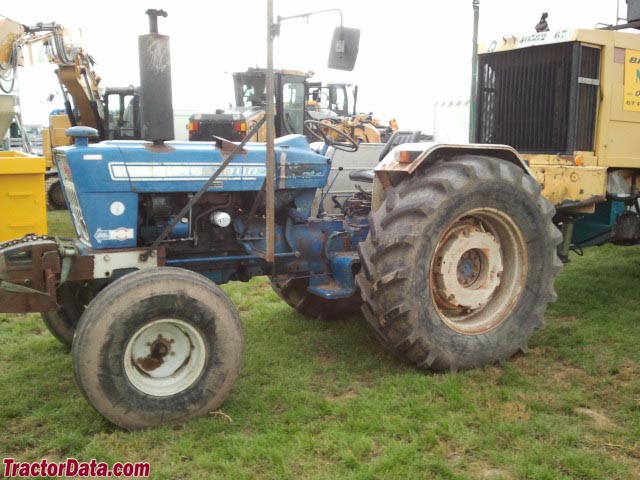

Ford 7000 tractor photo
1971 - 1975
Utility tractor
Series map:
7000
93.0hp
Production
ManufacturerFord
Utility tractor
Original price was $12,260 in 1975
Variants
7100all-purpose
7200row-crop
Ford 7000 Engine
Ford 4.2L 4-cyl diesel
Fuel tank20 gal
75.7 L
Engine details ...
Ford 7000 Transmissions
8-speed constant mesh
16-speed two-speed power shift
Transmission details ...
Ford 7000 Power
Engine (gross)93 hp
69.4 kW
Engine (net)89 hp
66.4 kW
PTO (claimed)83 hp
61.9 kW
Drawbar (tested)66.66 hp
49.7 kW
PTO (tested)83.49 hp
62.3 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringmanual
 hydrostatic power OptOptional
Open operator station
Hydraulics
Type11.45
Pressure2500 psi
172.4 bar
Valves2
Pump flow6 gpm
22.7 lpm
Steering flow2.74 gpm
10.4 lpm
Steering press.1100 psi
75.8 bar
Tractor hitch
Rear TypeII
Controlposition and draft control
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
 540/1000 OptOptional
Engine RPM540@1900
 1000@2060
Dimensions & Tires
Wheelbase87.5 inches
222 cm
Weight6300 lbs
2857 kg
Front tire6.00-16
Rear tire13.6-38
Full dimensions and tires ...
7000 Serial Numbers
1971C292100
1972C327200
1973C367300
1974C405200
1975C450700

FAQ: How to read a serial number table.
Links
Dave's 7000: Information and specifications on the Ford 7000
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Battery volts12
Battery AH128
References
7000 references literature
Buyer's Guide '73 published in 1973, by Ford
Buyer's Guide '74 published in 1974, by Ford
New Ford 7000 published in 1971
7000 Plus published by Ford
Operator's Manual 7000 published in 1971, by Ford
Operator's Manual 7000 Row Crop Supplement (SE 3363) published in 1971
