    Ford 7000 - engine

    Ford 7000 tractor photo
    1971 - 1975
    Next model:Ford 7600
    more Ford 7000 specifications...






    Engine Detail:

     Ford
     turbocharged diesel
     4-cylinder
     liquid-cooled
     256 ci [4.2 L]
    Bore/Stroke:4.40x4.20 inches [112 x 107 mm]
    Power:94 hp [70.1 kW]
    Air cleaner:dry
    Compression:16.5:1
    Rated RPM:2100
    Firing order:1-3-4-2
    Starter volts:12
    Oil capacity:9 qts [8.5 L]
    Coolant capacity:14.5 qts [13.7 L]
    Intake valve clearance:0.015 inches [0.381 mm] (hot)
    Exhaust valve clearance:0.018 inches [0.457 mm] (hot)

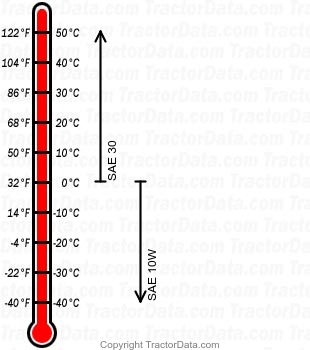

    7000 diesel engine oil chart
