Tractors > Ford > 3600

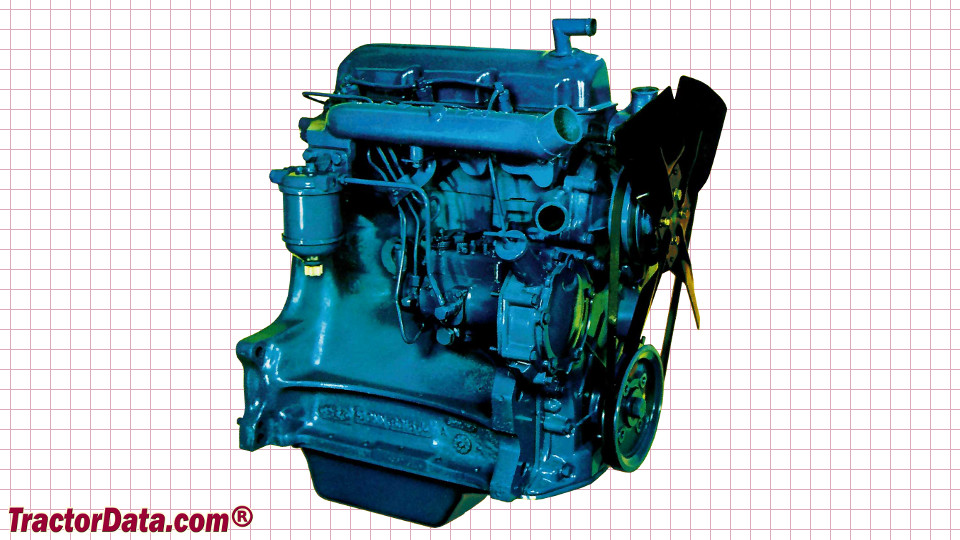

Ford 3600 - engine

Ford 3600 tractor photo
1975 - 1981
Utility tractor
Previous model:Ford 3000
Next model:Ford 3610
Series back:Ford 2600
more Ford 3600 specifications...






Engine Detail:

 Ford
 diesel
 3-cylinder
 liquid-cooled
 175 ci [2.9 L]
Bore/Stroke:4.20x4.20 inches [107 x 107 mm]
Power (gross):48 hp [35.8 kW]
Air cleaner:oil bath
Pre-heating:ether injection*Optional
 coolant heater*Optional
Compression:16.3:1
Rated RPM:2000
Torque:135 lb-ft [183.1 Nm]
Torque RPM:1400
Starter:electric
Starter volts:12
Oil capacity:7 qts [6.6 L]
Coolant capacity:11 qts [10.4 L]


Engine Detail:

 Ford
 gasoline
 3-cylinder
 liquid-cooled
 175 ci [2.9 L]
Bore/Stroke:4.20x4.20 inches [107 x 107 mm]
Power (gross):46 hp [34.3 kW]
Air cleaner:dry
Compression:7.75:1
Rated RPM:2000
Torque:135 lb-ft [183.1 Nm]
Torque RPM:1100
Starter:electric
Starter volts:12
Oil capacity:7 qts [6.6 L]
Coolant capacity:11 qts [10.4 L]
