Tractors > Ford > FW-30

Ford FW-30 - tests

Ford FW-30 tractor photo
1977 - 1982   FW Series
Four-wheel Drive (4WD) tractor
Series next:Ford FW-40
Series back:Ford FW-20
more Ford FW-30 specifications...






Nebraska Tractor Test 1288:

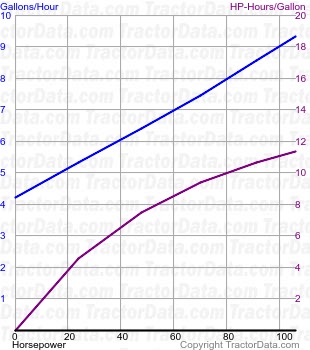

FW-30 fuel use from test 1288
Test Date:September 25 - October 14, 1978
Type:Diesel 20-speed 4WD
PTO power (rated PTO speed):105.31 hp [78.5 kW]
PTO fuel use (PTO speed):10.9 gal/hour [41.3 l/hour]
Drawbar power (max):205.2 hp [153.0 kW]
Drawbar fuel use (max):15.0 gal/hour [56.8 l/hour]
Drawbar pull (max):27803 lbs [12611 kg]
Max pull gear:1LO
Test report:PDF file
