Ford FW-20 Transmission


Ford FW-20 tractor photo
1977 - 1982
FW Series
Four-wheel Drive (4WD) tractor
Steiger built
Series:FW-20FW-30
Transmissions overview
10-speed
20-speed
Transmission
Transmission:Spicer 1010
Gears:10 forward and 2 reverse
Clutch:hydraulic 355mm cerametallic dry discs
Oil capacity:37 qts
35.0 L
Five gears (1-5) plus reverse (R) in two ranges (low/high).
Speeds

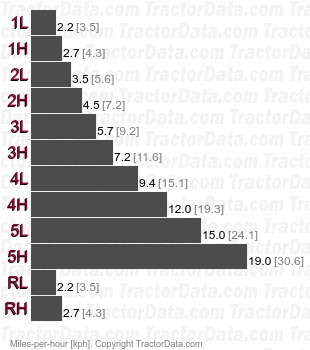

FW-20 1010  speeds
Transmission
Gears:20 forward and 4 reverse
Clutch:hydraulic dry disc
Optional dual-speed transfer case provides 20 forward gears on the base 10-speed transmission.
Speeds

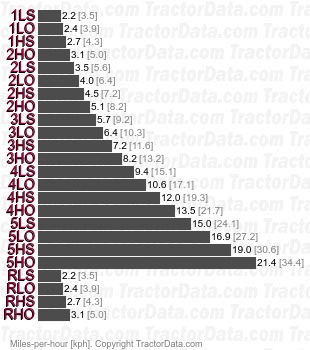

FW-20   speeds
