Series map:
New Major
29.0kw*
*Estimated engine power for comparison only.
| Transmission |
| Type | gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 21.6 qts
20.4 L
|
| Oil type | | 90oF [32oC]↑ | : SAE140 | | 90o↔10oF [32o↔-12oC] | : SAE90 | | 10oF [-12oC]↓ | : SAE80 |
|
| Three speeds, plus reverse, in two ranges. |

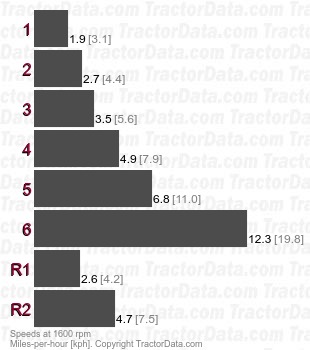

| Speeds |
|

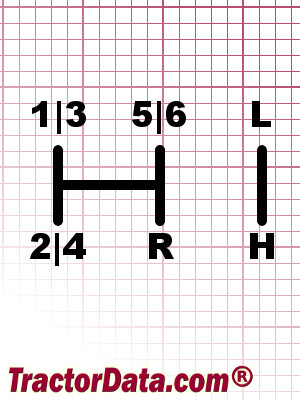

| Shift Pattern |
 |
