    Ford Golden Jubilee NAA

    Ford Golden Jubilee NAA tractor photo
    1953 - 1954
    Utility tractor
    Previous model:Ford 8N
    Next model:Ford 640





    The Ford NAA "Golden Jubilee" was released as part of the 50th anniversary of Ford. The 1953 version had a special nose badge noting the anniversary.


    Production:

    Manufacturer:Ford
    Factory:Highland Park, Michigan, USA
    Total built:128,965
    Original price (USD):$1,560 (1954)


    Ford NAA Engine:

       Ford 2.2L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:11 gal [41.6 L]
    Hydraulic system:2 gal [7.6 L]
    Rear axle:8 qts [7.6 L]


    3-Point Hitch:

    Rear Type:I
    Control:position and draft control
    Rear lift:800 lbs [362 kg]


    Power Take-off (PTO):

    Rear PTO:transmission
     live (optional)
    Rear RPM:540 (1.125)
    Engine RPM:545@1500


    Dimensions & Tires:

    Wheelbase:73.875 inches [187 cm]
    Weight:2550 to 4392 pounds
    Front tire:5.50-16
    Rear tire:10-28
    full dimensions and tires ...


    NAA Serial Numbers:

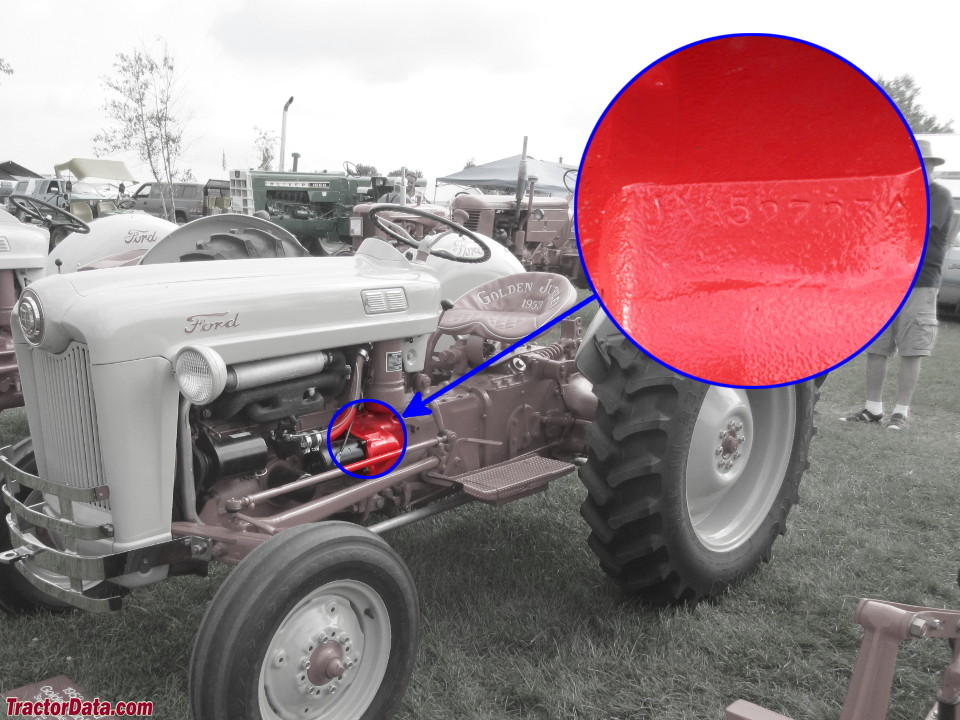

    Location:Front of engine block (early) or left side of transmission case (later).
    photo of NAA serial number

    1953: NAA 1
    1954: NAA 77475
    Final: NAA 128965

    how to read serial numbers...



    Links:

    N Tractor Club:


    Ford NAA Power:

    Drawbar (claimed):20.2 hp [15.1 kW]
    PTO (claimed):30.15 hp [22.5 kW]
    Plows:2 (16-inch)
     (3 14-inch was common)
    Drawbar (tested):26.8 hp [20.0 kW]
    Belt (tested):31.14 hp [23.2 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:differential mechanical drum
    Cab:Open operator station


    Hydraulics:

    Type:live
    Capacity:2 gal [7.6 L]
    Pressure:2000 psi [137.9 bar]
    Pump flow:4.8 gpm [18.2 lpm]
    Oil type:
    32oF [0oC] : Type A Hydraulic Oil
    32oF [0oC] : Type C Hydraulic Oil



    Belt Pulley:

    Diameter:9 inches [22 cm]
    RPM:1358
    Speed:3199 ft/min [975.06 meters/min]


    Electrical:

    Ground:positive
    Charging system:generator
    Charging amps:20


    Battery:

    Number:1
    Volts:6
