Ford Golden Jubilee NAA Engine


Ford Golden Jubilee NAA tractor photo
1953 - 1954
Utility tractor
Series map:
NAA
33.5hp
Engine Detail
Ford
gasoline
4-cylinder 8-valve
liquid-cooled
Displacement134 ci
2.2 L
Bore/Stroke3.4375x3.60 inches
87 x 91 mm
Compression6.6:1
Rated RPM2000
Idle RPM450-2000
Operating RPM1500-2000
Torque110 lb-ft
149.2 Nm
Torque RPM1400
Firing order1-2-4-3
Starter volts6
Coolant capacity15 qts
14.2 L
SparkplugH-10 14mm
Sparkplug gap0.025 inches
0.635 mm
Point gap0.025 inches
0.635 mm

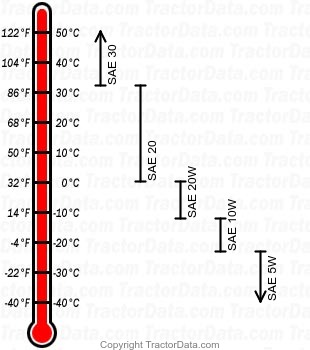

Engine Oil
Golden Jubilee NAA gasoline engine oil chart
Oil capacity5 qts
4.7 L

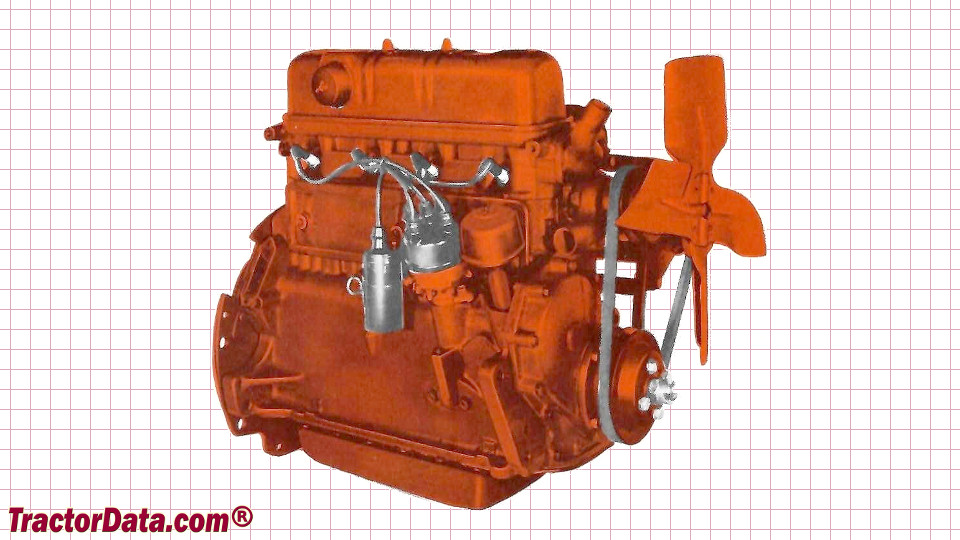

Ford NAA Engine
Ford NAA engine image
