Fordson Dexta Engine


Fordson Dexta tractor photo
1958 - 1961
Utility tractor
Engines overview
Ford-Perkins 2.4L 3-cyl diesel
Standard 2.2L 4-cyl gasoline
Engine Detail
Ford-Perkins F3.144
diesel
3-cylinder
liquid-cooled
Displacement:144 ci
2.4 L
Bore/Stroke:3.50x5.00 inches
89 x 127 mm
Power:32 hp
23.9 kW
Air cleaner:oil bath
Compression:16.5:1
Rated RPM:2000
Torque:93 lb-ft
126.1 Nm
Torque RPM:1200
Firing order:1-2-3
Starter volts:12
Oil capacity:7.66 qts
7.2 L
Oil change:100 h

Coolant capacity:9 qts
8.5 L
Intake valve clearance:0.010 inches
0.254 mm *Hot
Exhaust valve clearance:0.010 inches
0.254 mm *Hot
Engine Detail
Standard Vanguard
gasoline
4-cylinder 8-valve
liquid-cooled inline
Displacement:133.5 ci
2.2 L
Bore/Stroke:3.425x3.622 inches
87 x 92 mm
Compression:6:1
Firing order:1-3-4-2
Starter volts:12
Coolant capacity:6.9 qts
6.5 L
Sparkplug:Champion L10
Sparkplug gap:0.031 inches
0.787 mm
Intake valve clearance:0.010 inches
0.254 mm
Exhaust valve clearance:0.006 inches
0.152 mm
Engine Oil

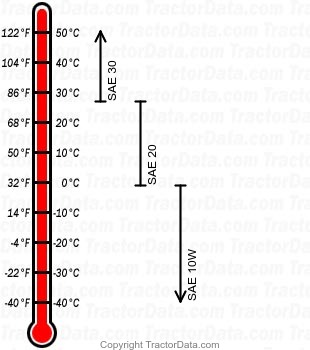

Dexta gasoline engine oil chart
Oil capacity:7.2 qts
6.8 L
Oil change:200 h
