    Fordson Fordson F

    Fordson Fordson F tractor photo
    1917 - 1928
    Standard-tread tractor
    Next model:Fordson Fordson N





    The name Fordson was used for two reasons. The "Ford Tractor" name was already being used by a company in Minneapolis. In addition, the Ford Motor Company shareholders had no interest in tractor production, so Henry Ford started an independent company for building tractors, named Henry Ford & Son.


    Production:

    Manufacturer:Fordson
    Factory:Dearborn, MI
     Cork, Ireland
    Total built:755,278 (747,681 in USA, 7,597 in Ireland)


    Fordson Fordson F Engines:

       Ford 4.1L 4-cyl distillate
       Hercules 4.1L 4-cyl distillate
    full engine details ...


    Capacity:

    Fuel:21 gal [79.5 L]


    Dimensions & Tires:

    Wheelbase:63 inches [160 cm]
    Weight:2,920 lbs [1324 kg]
    Rear tire:42x12
    full dimensions and tires ...


    Fordson F Serial Numbers:

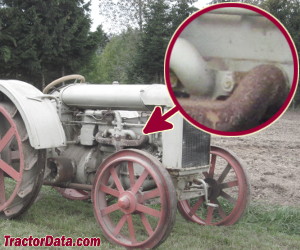

    Location:Below the cylinder head on the right side of the engine.
    1917: 1 (USA)
    1918: 260 (USA)
    1919: 34427 (USA)
    1920: 100001 (USA)
    1921: 158312 (USA)
    1922: 201026 (USA)
    1923: 268583 (USA)
    1924: 370351 (USA)
    1925: 455360 (USA)
    1926: 557608 (USA)
    1927: 629830 (USA)
    1919: 63001 (Ireland)
    1920: 65001 (Ireland)
    1921: 108230 (Ireland)
    1922: 109673 (Ireland)

    how to read serial numbers...



    Links:

    Fordson F: Photos and information on the Fordson F from Kurt Ristniemi


    Fordson Fordson F Power:

    Engine:20 hp [14.9 kW]
    Drawbar (claimed):10 hp [7.5 kW]
    PTO (claimed):20 hp [14.9 kW]
    Plows:2 (14-inch)
    Drawbar (tested):12.325 hp [9.2 kW]
    Belt (tested):22.28 hp [16.6 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual


    Belt Pulley:

    Diameter:9.5 inches [24 cm]
    Width:6.5 inches [16 cm]
    RPMs:1000
    Speed:2480 ft/min [755.90 meters/min]
