Allis Chalmers 7060 Tests


Allis Chalmers 7060 tractor photo
1974 - 1981
7000 Series
Row-Crop tractor
Series map:
7045
7060
7080
173.0hp
192.0hp
210.0hp
Tractor Tests
NTTL 1167: diesel Power Director 2WD
NTTL 1197: diesel Power Shift 2WD
Nebraska Tractor Test 1167

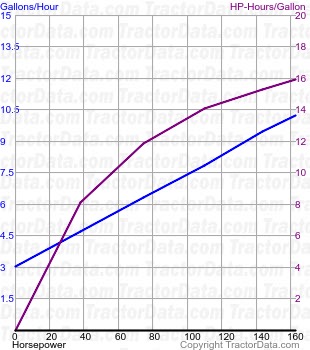

7060 fuel use from test 1167
Nebraska Tractor Test 1167
Diesel Power Director 2WD
October 30 - November 11, 1974
Link: Nebraska Tractor Test 1167 file
PTO performance
Power at rated engine speed161.51 hp
120.4 kW
Fuel use10.2 gal/hour
38.6 l/hour
Power at rated PTO speed160.44 hp
119.6 kW
Fuel use10.0 gal/hour
37.9 l/hour
Drawbar performance
Max power136.12 hp
101.5 kW
Fuel use10.0 gal/hour
37.9 l/hour
Gear 4-Slow-Hi used for power test.
Max pull17,370 lbs
7879 kg
Gear 1-Slow-Hi used for pull test.
Nebraska Tractor Test 1197
7060 fuel use from test 1197
Nebraska Tractor Test 1197
Diesel Power Shift 2WD
November 5 - 19, 1975
Link: Nebraska Tractor Test 1197 file
PTO performance
Power at rated engine speed161.42 hp
120.4 kW
Fuel use10.2 gal/hour
38.6 l/hour
Power at rated PTO speed161.65 hp
120.5 kW
Fuel use10.1 gal/hour
38.2 l/hour
Drawbar performance
Max power141.67 hp
105.6 kW
Fuel use10.3 gal/hour
39.0 l/hour
Gear 1-High used for power test.
Max pull17,851 lbs
8097 kg
Gear 2-Low used for pull test.
