    Allis Chalmers 7045 - transmission




    Allis Chalmers 7045 tractor photo I&T Manual: Allis-Chalmers D-21, Two-Ten, D-19, 180, 185, 190, 200, 7000 series
    I&T Shop Manual
    Model:7045
    Years:1978 - 1981
    Tractor type:Farm/Agricultural tractor
    Original price:$43,328
    more Allis Chalmers 7045 specifications...


    Transmission:

    :Power Director
    Type:-unknown-
    Forward:20
    Reverse:4
    Oil capacity:29.6 qts [28.0 L]
    Speeds:With 18.4x38 rear tires.

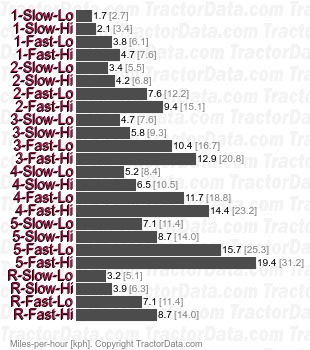

    Gear
    1-Slow-Lo1.7mph [2.7kph]
    1-Slow-Hi2.1mph [3.4kph]
    1-Fast-Lo3.8mph [6.1kph]
    1-Fast-Hi4.7mph [7.6kph]
    2-Slow-Lo3.4mph [5.5kph]
    2-Slow-Hi4.2mph [6.8kph]
    2-Fast-Lo7.6mph [12.2kph]
    2-Fast-Hi9.4mph [15.1kph]
    3-Slow-Lo4.7mph [7.6kph]
    3-Slow-Hi5.8mph [9.3kph]
    3-Fast-Lo10.4mph [16.7kph]
    3-Fast-Hi12.9mph [20.8kph]
    4-Slow-Lo5.2mph [8.4kph]
    4-Slow-Hi6.5mph [10.5kph]
    4-Fast-Lo11.7mph [18.8kph]
    4-Fast-Hi14.4mph [23.2kph]
    5-Slow-Lo7.1mph [11.4kph]
    5-Slow-Hi8.7mph [14.0kph]
    5-Fast-Lo15.7mph [25.3kph]
    5-Fast-Hi19.4mph [31.2kph]
    R-Slow-Lo3.2mph [5.1kph]
    R-Slow-Hi3.9mph [6.3kph]
    R-Fast-Lo7.1mph [11.4kph]
    R-Fast-Hi8.7mph [14.0kph]



    Transmission:

    :Power Shift
    Type:-unknown-
    Forward:12
    Reverse:2
    Oil capacity:-unknown-
    Speeds:With 18.4x38 rear tires.

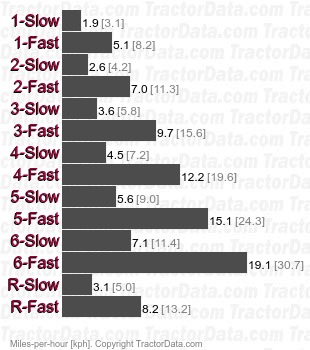

    Gear
    1-Slow1.9mph [3.1kph]
    1-Fast5.1mph [8.2kph]
    2-Slow2.6mph [4.2kph]
    2-Fast7.0mph [11.3kph]
    3-Slow3.6mph [5.8kph]
    3-Fast9.7mph [15.6kph]
    4-Slow4.5mph [7.2kph]
    4-Fast12.2mph [19.6kph]
    5-Slow5.6mph [9.0kph]
    5-Fast15.1mph [24.3kph]
    6-Slow7.1mph [11.4kph]
    6-Fast19.1mph [30.7kph]
    R-Slow3.1mph [5.0kph]
    R-Fast8.2mph [13.2kph]
