Tractors > Allis Chalmers > 6060

Allis Chalmers 6060 - transmission

Allis Chalmers 6060 tractor photo
1980 - 1984   6000 Series
Row-Crop tractor
Previous model:Allis Chalmers 175
Next model:Deutz-Allis 6060
Series next:Allis Chalmers 6070
more Allis Chalmers 6060 specifications...






Transmission:

Type:partially synchronized
Gears:8 forward and 2 reverse
Oil capacity:12 qts [11.4 L]
Two ranges with four gears in each range. Synchronized shifting between top two gears (3-4 and 7-8) in each range.

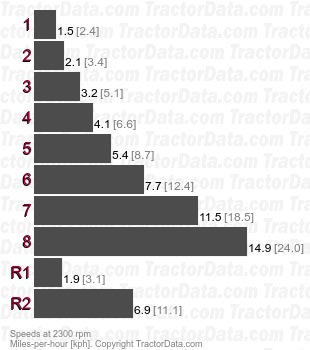

Speeds:With 15.5-38 rear tires.
6060  partially synchronized speeds
