Allis Chalmers 5050 Transmission


Allis Chalmers 5050 tractor photo
1977 - 1983
Utility tractor
Fiat built
Transmissions overview
8-speed partially synchronized
12-speed partially synchronized
Transmission
Type:partially synchronized
Gears:8 forward and 2 reverse
Oil capacity:19 qts
18.0 L
Gear pairs 3/4, and 7/8 are synchronized.
Speeds
With 14.9-28 rear tires.
5050  partially synchronized speeds
Transmission
Type:partially synchronized
Gears:12 forward and 3 reverse
Gear pairs 3/4, 7/8, and 11/12 are synchronized.

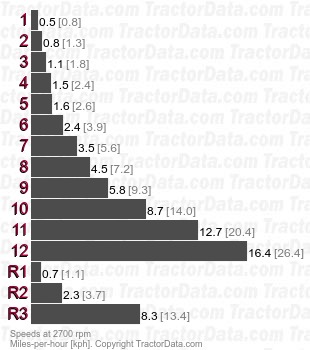

Speeds
With 14,9 rear tires.
5050  partially synchronized speeds
