Allis Chalmers 5050 Engine


Allis Chalmers 5050 tractor photo
1977 - 1983
Utility tractor
Fiat built
Engine Detail
Fiat
diesel
3-cylinder
liquid-cooled
Displacement:167.8 ci
2.8 L
Bore/Stroke:4.055x4.330 inches
103 x 110 mm
Fuel use:3.504 gal/hour
13.3 l/hour
Air cleaner:paper element
Compression:17.1:1
Rated RPM:2700
Starter volts:12
Oil capacity:8.1 qts
7.7 L
Coolant capacity:14.25 qts
13.5 L
Intake valve clearance:0.018 inches
0.457 mm (cold)
 0.014 inches
0.356 mm (hot)
Exhaust valve clearance:0.018 inches
0.457 mm (cold)
 0.014 inches
0.356 mm (hot)

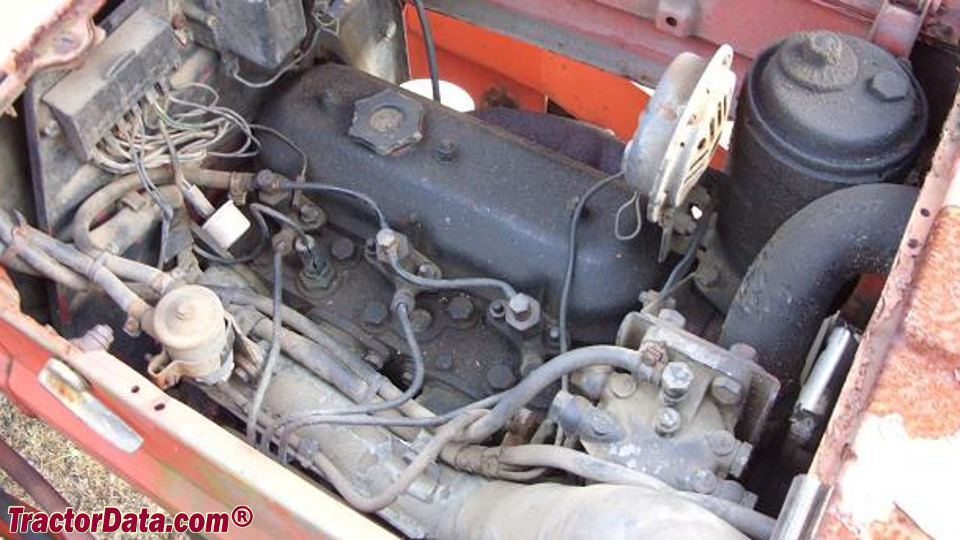

Allis Chalmers 5050  engine photo
