| | 1976 - 1980 |
| Utility tractor | | UTB/Universal built |
|
Series map:
5040
44.4hp*
*Estimated engine power for comparison only.
| Transmissions overview |
| 6-speed |
| 8-speed |
| 12-speed creeper |
| Transmission |
| Transmission | partially synchronized
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 254mm dry disc
|
| Oil capacity | 19 qts
18.0 L
|
| Three gears, plus reverse, in two ranges. Synchronized shifting between the top two gears (2/3 and 5/6). Used from 1976 to 1978. |
| Speeds |
| With 13.6-28 rear tires. |
|
| Transmission |
| Transmission | partially synchronized
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 279mm dry disc
|
| Oil capacity | 19 qts
18.0 L
|
| Four gears, plus reverse, in two ranges. Synchronized shifting between the top two gears (3/4 and 7/8). |
| Speeds |
| With 13.6-28 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 12 forward and 3 reverse
|
| Adds an additional creeper range to the standard transmission. Creeper was available for either the 3-speed (early) or 4-speed (late) gearbox. On the early transmission, the third gear omitted. |

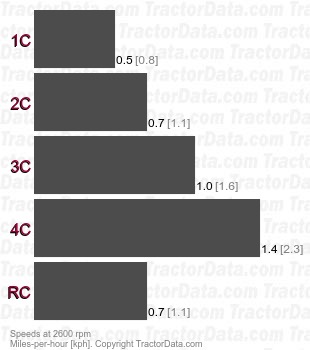

| Speeds |
|
