Tractors > Allis Chalmers > 220

Allis Chalmers 220 - tests

Allis Chalmers 220 tractor photo
1970 - 1973
Row-Crop tractor
Previous model:Allis Chalmers D21
Series back:Allis Chalmers 210
more Allis Chalmers 220 specifications...






Nebraska Tractor Test 1017:

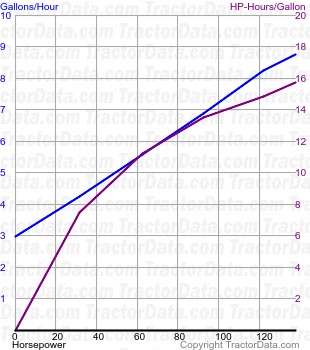

220 fuel use from test 1017
Test Date:June 17 - 24, 1969
Type:Diesel 8-speed 2WD
PTO power (rated engine speed):135.95 hp [101.4 kW]
PTO fuel use (engine speed):8.7 gal/hour [32.9 l/hour]
Drawbar power (max):117.21 hp [87.4 kW]
Drawbar fuel use (max):8.7 gal/hour [32.9 l/hour]
Drawbar pull (max):15,710 lbs [7126 kg]
Max pull gear:2
Test report:PDF file
