    Allis Chalmers D21 - transmission




    Allis Chalmers D21 tractor photo I&T Manual: Allis-Chalmers D-21, Two-Ten, D-19, 180, 185, 190, 200, 7000 series
    I&T Shop Manual
    Model:D21
    Years:1963 - 1969
    Tractor type:Farm/Agricultural tractor
    Original price:$12,290
    more Allis Chalmers D21 specifications...


    Transmission:

    :sliding gear
    Type:-unknown-
    Forward:8
    Reverse:2
    Oil capacity:68 qts [64.4 L] (no PTO or hydraulics)
    92 qts [87.1 L]
    Comments:Transmission is controlled by means of a range control knob and a gear shift lever. The range knob is located below the steering wheel, pushing it forward puts the tractor in high range, pull it back engages low range. The gear shift selects one of four forward gears, or reverse. The tractor must be stopped and clutch used to change gears or range.

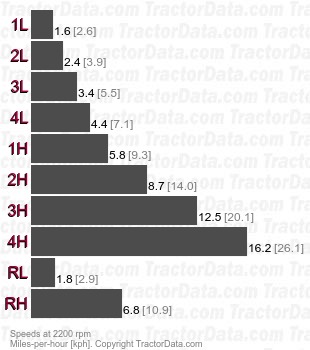

    Speeds:With 18.4x34 rear tires.

    Gear2200 rpm
    11.6mph [2.6kph]
    22.4mph [3.9kph]
    33.4mph [5.5kph]
    44.4mph [7.1kph]
    55.8mph [9.3kph]
    68.7mph [14.0kph]
    712.5mph [20.1kph]
    816.2mph [26.1kph]
    RL1.8mph [2.9kph]
    RH6.8mph [10.9kph]
