Allis Chalmers D21 - engine
| | Engine: |
| Manufacturer: | Allis Chalmers
|
| Model: | 3400
|
| Fuel: | diesel
|
| Cylinders: | 6
|
| Valves: | -unknown- |
| Bore/Stroke: | 4.25x5.00 inches [108 x 127 mm]
|
| Displacement: | 426 ci [7.0 L]
|
| Cooling: | liquid
|
| Coolant: | 21 qts [19.9 L]
|
| Air cleaner: | dry
|
| Compression: | 16.0:1
|
| Rated RPMs: | 2200
|
| Firing order: | 1-5-3-6-2-4
|
| Starter type: | -unknown- |
| Oil capacity: | 12 qts [11.4 L]
|

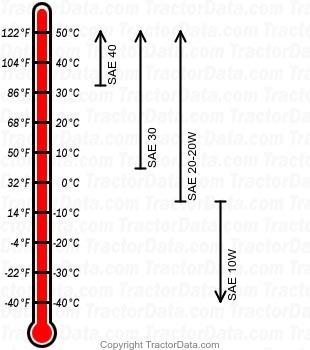

| Oil type: | | 90oF [32oC]↑ | : SAE40 | | 40oF [4oC]↑ | : SAE30 | | 20oF [-6oC]↑ | : SAE20-20W | | 20oF [-6oC]↓ | : SAE10W |
|
| Intake valve clearance: | 0.015 (hot)
|
| Exhaust valve clearance: | 0.015 (hot)
|
| Comments: | The original, Series I, engine used until 1965.
|
|
|
| | Engine: |
| Manufacturer: | Allis Chalmers
|
| Model: | 3500
|
| Fuel: | diesel
|
| Aspiration: | turbocharged
|
| Cylinders: | 6
|
| Valves: | -unknown- |
| Bore/Stroke: | 4.25x5.00 inches [108 x 127 mm]
|
| Displacement: | 426 ci [7.0 L]
|
| Cooling: | liquid
|
| Coolant: | 31 qts [29.3 L]
|
| Compression: | 16.0:1
|
| Rated RPMs: | 2200
|
| Firing order: | 1-5-3-6-2-4
|
| Starter type: | -unknown- |
| Oil capacity: | 15 qts [14.2 L]
|
| Intake valve clearance: | 0.015
|
| Exhaust valve clearance: | 0.015
|
| Comments: | The turbocharged Series II engine was used starting in 1965, serial number 2201.
|
