John Deere 2210
|
|
| Production | |
| Manufacturer | John Deere |
| Sub-Compact Utility tractor | |
| Built in Augusta, Georgia, USA | |
| John Deere 2210 Engine | |
| Yanmar 1.0L 3-cyl diesel | |
 Engine details ... |
| John Deere 2210 Transmission | |
| hydrostatic | |
 Transmission details ... |
| John Deere 2210 Power | |
| Engine (gross) | 23 hp 17.2 kW |
| Engine (net) | 22.5 hp 16.8 kW |
| PTO (claimed) | 17.7 hp 13.2 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | spur gear |
| Differential lock | mechanical rear |
| Power steering | |
| Two-post fixed ROPS. | |
| Photos | |
 | |
 John Deere 2210 photos... | |
| Capacity | |
| Fuel | 5 gal 18.9 L |
| Hydraulic system | 3.4 gal 12.9 L |
| Hydraulics | |
| Type | open center |
| Capacity | 3.4 gal 12.9 L |
| Pressure | 1987 psi 137.0 bar |
| Mid valves | 2 |
| Pump flow | 3 gpm 11.4 lpm |
| Total flow | 5.5 gpm 20.8 lpm |
| Steering flow | 2.5 gpm 9.5 lpm |
| Tractor hitch | |
| Rear Type | I *Limited |
| Rear lift (at 24"/610mm) | 700 lbs 317 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2600 |
| Mid PTO | independent |
| Clutch | hydraulic wet disc *Mid PTO shared clutch with rear PTO. |
| Engine RPM | 2100@2600 |
| Dimensions & Tires | |
| Wheelbase | 57 inches 144 cm |
| Weight | 1400 lbs 635 kg |
| Front tire | 18x8.50-10 |
| Rear tire | 26x12.00-12 |
 Full dimensions and tires ... | |
| John Deere 2210 attachments | |
| 54" mid-mount mower deck | |
| 62" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
 Attachment details ... |

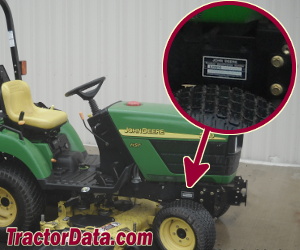

| 2210 Serial Number Location | |
 | |
| Right side of main tractor frame, above the front axle. |
| 2210 Serial Numbers | |
| 2003 | 2100001 |
| 2004 | 3100001 |
| 2005 | 4310001 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| Battery CCA | 435 |
| Battery volts | 12 |
| References | |
 | |
| Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere |
