    John Deere 8870

    John Deere 8870 tractor photo
    1993 - 1996   8070 Series
    Four-wheel Drive (4WD) tractor
    Larger:John Deere 8970
    Smaller:John Deere 8770






    Production:

    Manufacturer:John Deere
    Factory:Waterloo, Iowa, USA
    Original price (USD):$126,538 (1996)


    John Deere 8870 Engine:

       John Deere 10.1L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:220 gal [832.7 L]
    Hydraulic system:38 gal [143.8 L]


    3-Point Hitch:

    Rear Type:3 (optional)
    Control:draft sensing
    Rear lift:14,980 lbs [6794 kg]


    Power Take-off (PTO):

    Rear PTO:independent (optional)
    Clutch:hydraulic wet disc
    Rear RPMs:1000 (1.75)


    Dimensions & Tires:

    Wheelbase:134 inches [340 cm]
    Weight:31438 to 35130 pounds
    Front tire:24.5R-32
    Rear tire:24.5R-32
    full dimensions and tires ...

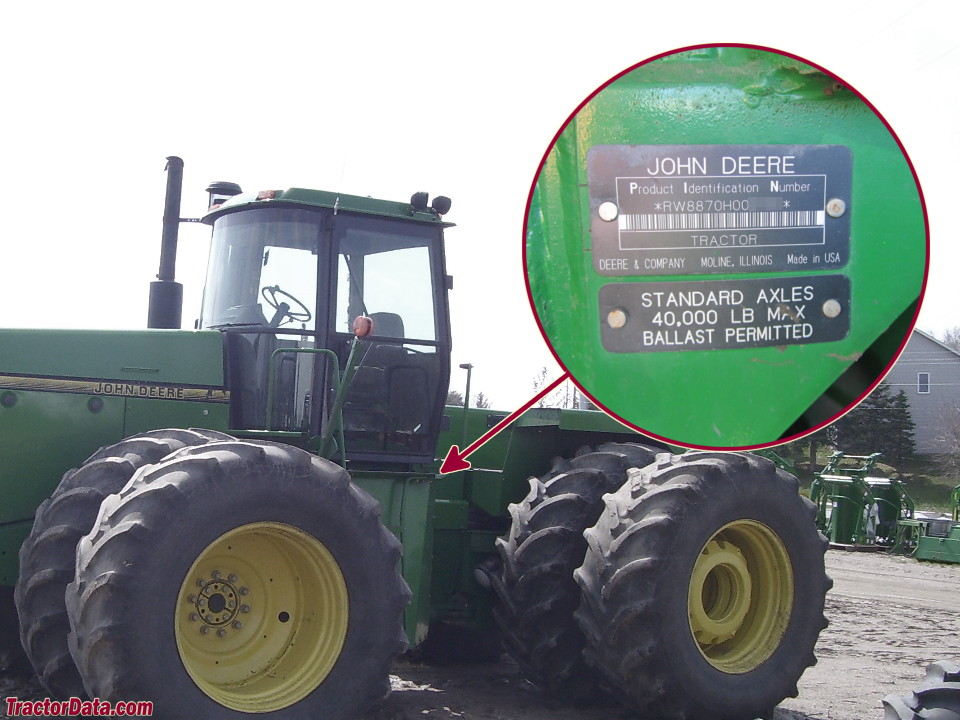

    8870 Serial Numbers:

    Location:Left side of tractor hinge.
    photo of 8870 serial number

    1993: 1001
    1994: 1881
    1995: 2895
    1996: 5001

    how to read serial numbers...



    John Deere 8870 Power:

    Engine (gross):350 hp [261.0 kW]
    PTO (claimed):300 hp [223.7 kW]
    Drawbar (tested):280.34 hp [209.0 kW]
    PTO (tested):302.75 hp [225.8 kW]
    power test details ...


    Mechanical:

    Chassis:4x4 articulated 4WD
    Final drives:inboard planetary
    Steering:hydrostatic power
    Brakes:hydraulic wet discs
    Cab:Sound-Gard cab standard.


    Hydraulics:

    Type:closed center pressure compensated
    Capacity:38 gal [143.8 L]
    Pressure:2530 psi [174.4 bar]
    Rear valves:3 to 5
    Pump flow:44.8 gpm [169.6 lpm]
    SCV flow:33.3 gpm [126.0 lpm]


    Electrical:

    Ground:negative


    Battery:

    Number:2
    Cold-cranking amps:925
    Volts:12
