John Deere 650

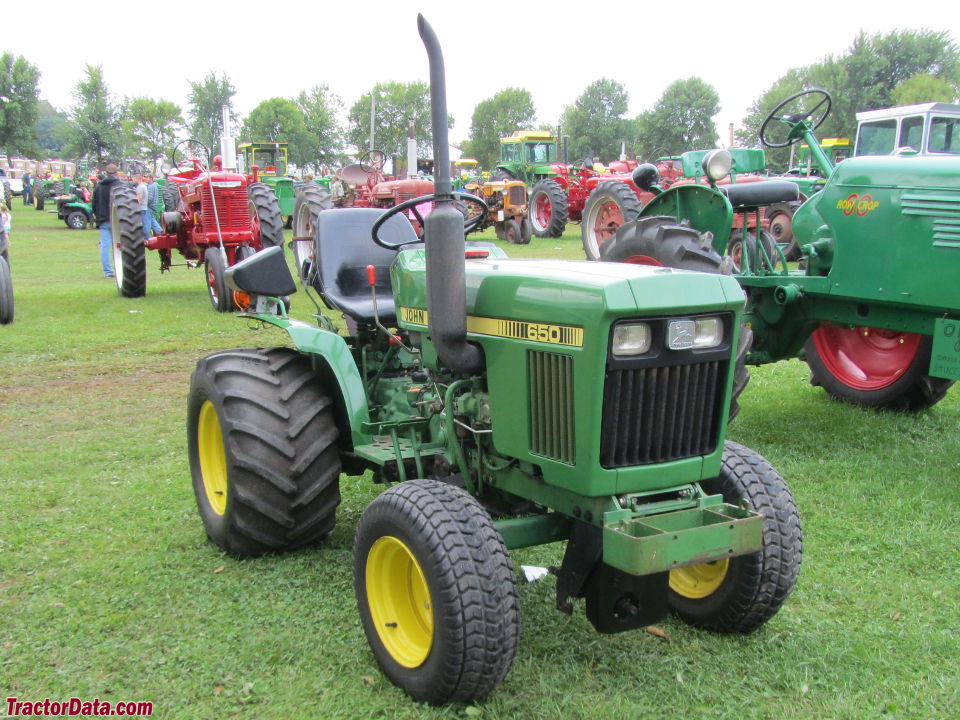

John Deere 650 tractor photo
1981 - 1988
50 Compact Series
Compact Utility tractor
Yanmar built
Series map:
650
750
17.0hp
20.0hp
Production
DistributorJohn Deere
ManufacturerYanmar
Compact Utility tractor
Built in Japan
Original price$6,030 (1983 2WD )
$8,400 (1989 2WD )
$9,300 (1989 4WD )
John Deere 650 Power
Engine (gross)17 hp
12.7 kW
PTO (claimed)14.5 hp
10.8 kW
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear
Steeringmanual
 power OptOptional
Differential mechanical dry, internal expanding shoe brakes
Two-post fixed ROPS.
Capacity
Fuel6.2 gal
23.5 L
Hydraulic system3.75 gal
14.2 L
Hydraulics
Typeopen center
Capacity3.75 gal
14.2 L
Pressure2030 psi
140.0 bar
Valves2 OptOptional
Tractor hitch
Rear TypeI
Controlposition control
Power Take-off (PTO)
Rear PTOtransmission
Clutch200mm over-running dry disc
Rear PTO Type540 (1.375)
Engine RPM540@2350
Front PTOindependent OptOptional
Clutchelectro-magnetic
Dimensions & Tires
Wheelbase56.1 inches
142 cm
Weight1530 to 1640 pounds
Front tire5.00-12
Rear tire9.5-16
Full dimensions and tires ...
John Deere 650 attachments
60" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...

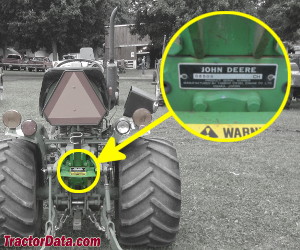

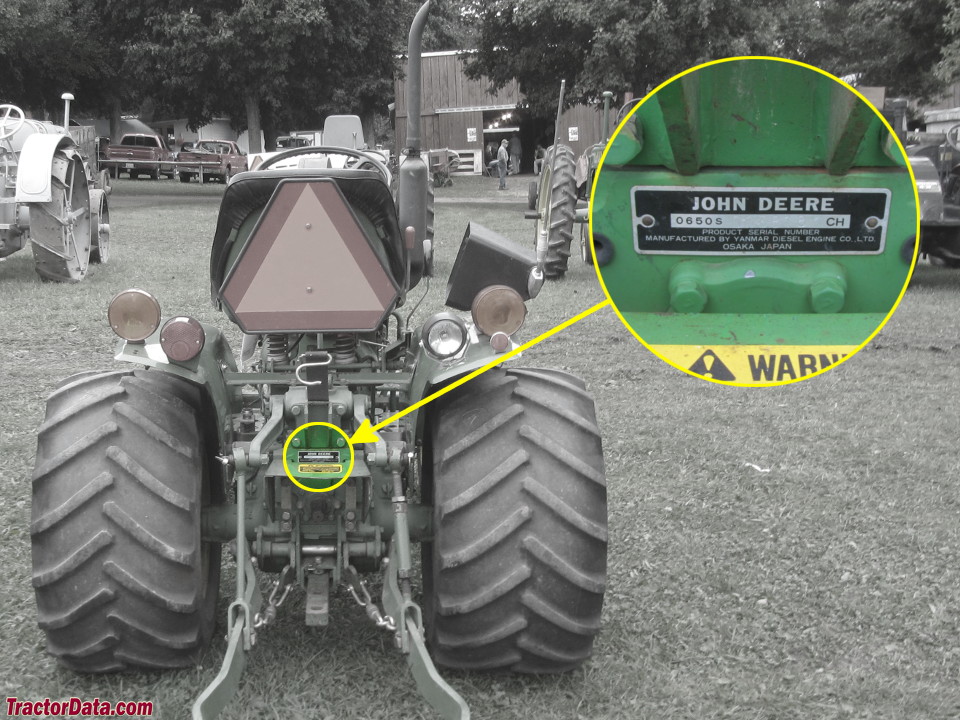

650 Serial Number Location
John Deere 650 serial number location
Serial number plate on the rear of the tractor, above the PTO shaft.
650 Serial Numbers
19811000
19823539
19836250
198410543
198515001
198619001
198722501
198824298
Final25426

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery CCA370
Battery volts12
Battery GroupBCI 24
References
650 references literature
Consumer Products Price List published in 1983, by John Deere
Grounds Care Equipment Purchasing Guide published in 1983, by John Deere
Powerful Pickups published in 1990, by John Deere
Compact Utility/Utility Tractors Product Information Handbook published in 1983, by John Deere
Compact Utility Tractors published in 1981, by John Deere
Compact Utility Diesel Tractors 14.5 to 40 PTO hp published in 1982, by John Deere
Diesel Tractors 14.5 to 60 PTO hp published in 1984, by John Deere
Mechanical Front-Wheel Drive published in 1984, by John Deere
