    John Deere 4320

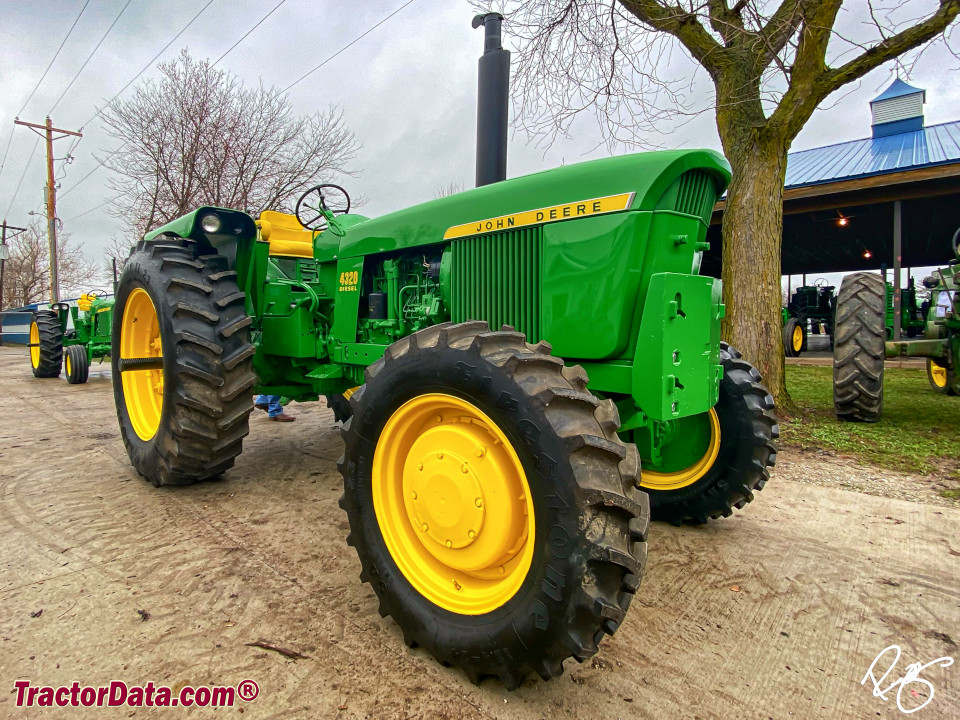

    John Deere 4320 tractor photo  I&T Manual: Deere 6030, 3010, 3020, 4010, 4020, 5010, 5020, 4000, 4320, 4520, 4620
    I&T Shop Manual
    1971 - 1972   New Generation Series
    Row-Crop tractor
    Smaller:John Deere 4020





    The John Deere 4320 might be called a 4020 with a turbocharged engine, although both the engine and final drives received upgrades. The 4320 was created to fill a horsepower gap in the Deere lineup between the 4020 and the 4520/4620.


    Production:

    Manufacturer:John Deere
    Factory:Waterloo, Iowa, USA
    Total built:21,485
    Original price (USD):$12,000 (1972)


    John Deere 4320 Engine:

       John Deere 6.6L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:44 gal [166.5 L]
    Hydraulic system:14 gal [53.0 L]


    3-Point Hitch:

    Rear Type:II


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540/1000
     1000


    Dimensions & Tires:

    Wheelbase:106.5 inches [270 cm]
    Weight:9050 to 14380 pounds
    Front tire:10.00-16
    Rear tire:18.4-34
    full dimensions and tires ...


    John Deere 4320 attachments:

     front-end loader
    all 4320 attachments ...

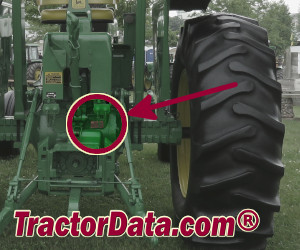

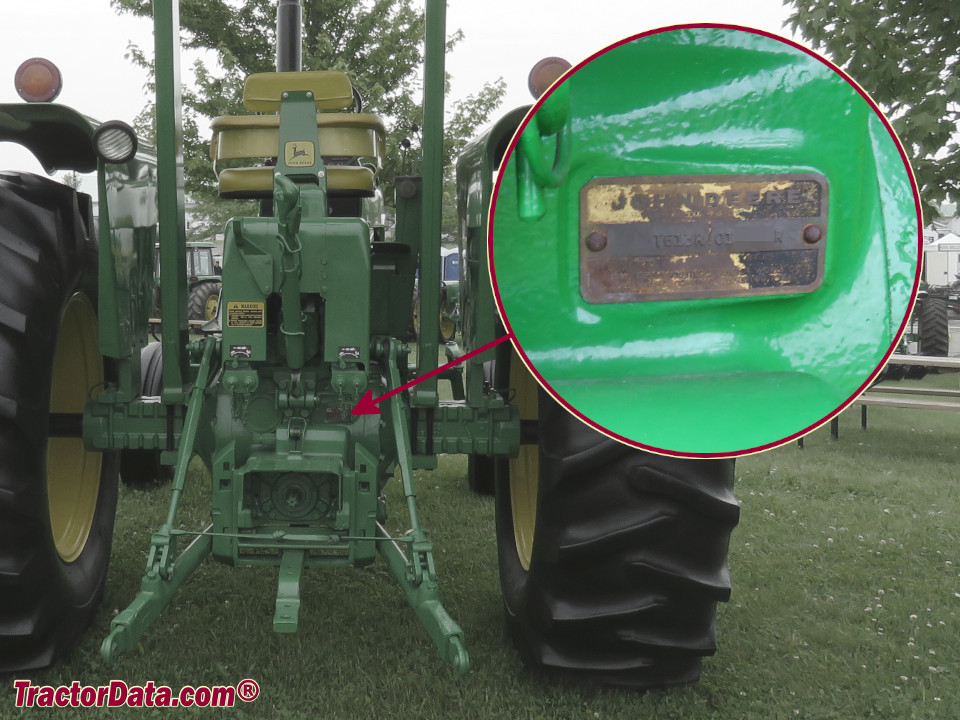

    4320 Serial Numbers:

    1971: 6000
    1972: 17031
    Final: 27484

    how to read serial numbers...



    John Deere 4320 Power:

    PTO (claimed):115 hp [85.8 kW]
    Drawbar (tested):101.7 hp [75.8 kW]
    PTO (tested):116.55 hp [86.9 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 HFWD 4WD (optional)
    Steering:hydrostatic power
    Brakes:differential hydraulic wet disc
    Cab:Open operator station. Two-post ROPS and canopy optional. Cab optional.


    Hydraulics:

    Type:closed center
    Capacity:14 gal [53.0 L]
    Valves:1 to 3
    Pump flow:22 gpm [83.3 lpm]


    Electrical:

    Ground:negative


    Battery:
