    John Deere 4010 - transmission

    John Deere 4010 tractor photo I&T Manual: Deere 6030, 3010, 3020, 4010, 4020, 5010, 5020, 4000, 4320, 4520, 4620
    I&T Shop Manual
    Production years:1960 - 1963
    Next model:John Deere 4020
    Tractor type:Farm/Agricultural tractor
    more John Deere 4010 specifications...

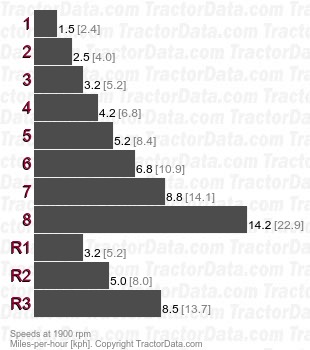

    Transmission:

    Transmission:Syncro-Range
    Type:partially synchronized
    Forward:8
    Reverse:3
    Oil capacity:-unknown-
    John Deere 4010 Syncro-Range transmission photo

    Comments:Synchro-Range requires the tractor to be stopped and clutch depressed to select one of four shift stations. Once a station is selected the tractor can be shifted on the move between the two forward gears (and single reverse in stations 1, 2, and 3) by using the clutch.
