Tractors > John Deere > 8010

John Deere 8010

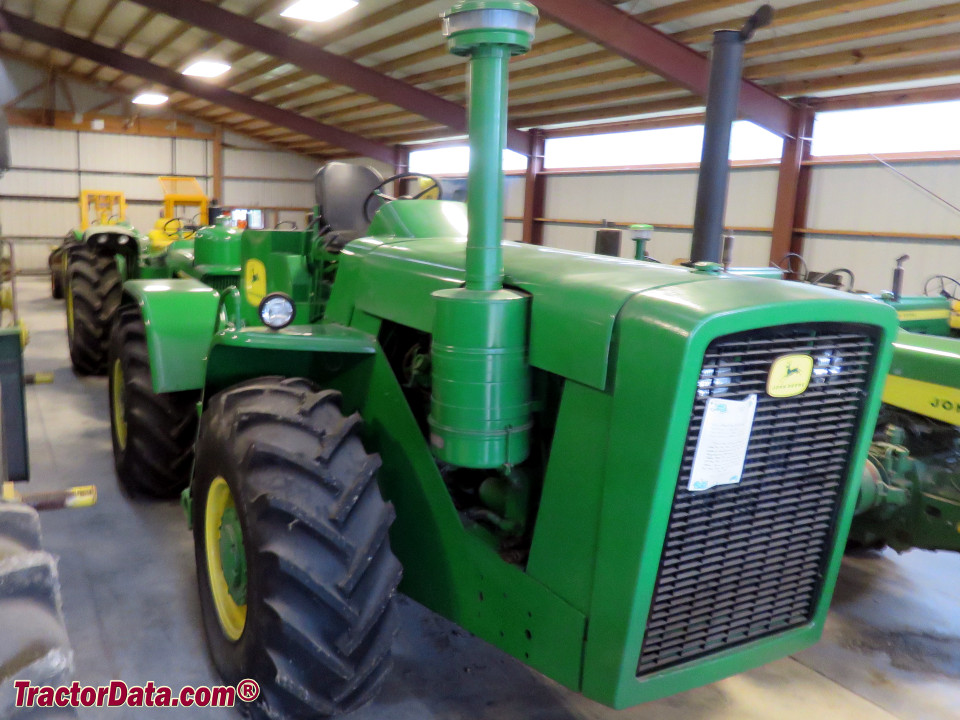

John Deere 8010 tractor photo
1960 - 1960
Standard-tread tractor
Next model:John Deere 8020





Due to transmission issues, the John Deere 8010s were returned to the factory and converted into 8020s. One 8010 escaped the recall and is currently in the Keller collection.


Production:

Manufacturer:John Deere
Factory:Waterloo, Iowa, USA
Total built:100


John Deere 8010 Engine:

   Detroit Diesel 7.0L 6-cyl diesel
full engine details ...


Capacity:

Fuel:106 gal [401.2 L]
Hydraulic system:25 gal [94.6 L]


Dimensions & Tires:

Wheelbase:120 inches [304 cm]
Weight:19700 lbs [8935 kg]
Front tire:23.1-26
Rear tire:23.1-26
full dimensions and tires ...


8010 Serial Numbers:

1961: 1000

how to read serial numbers...



John Deere 8010 Power:

Engine:215 hp [160.3 kW]
Drawbar (claimed):150 hp [111.9 kW]


Mechanical:

Chassis:4x4 articulated 4WD
Steering:articulated power
Brakes:pneumatic drum
Cab:Open operator station.


Hydraulics:

Capacity:25 gal [94.6 L]
Pump flow:40 gpm [151.4 lpm]
 60 gpm [227.1 lpm] *Optional


Electrical:

Charging system:generator
Charging volts:24


Battery:
