Tractors > John Deere > 530
      -Brand search:


    John Deere 530

    John Deere 530 tractor photo
    1958 - 1960   Two-Cylinder 30 Series
    Row-Crop tractor
    Previous model:John Deere 520
    Larger:John Deere 630
    Smaller:John Deere 430






    Production:

    Manufacturer:John Deere
    Factory:Waterloo, Iowa, USA
    Total built:9,800
    Original price (USD):$2400 (1960)


    John Deere 530 Engines:

       John Deere 3.1L 2-cyl gasoline
       John Deere 3.1L 2-cyl all-fuel
       John Deere 3.1L 2-cyl LP gas
    full engine details ...


    Capacity:

    Fuel:15.5 gal [58.7 L] (all-fuel)
     18 gal [68.1 L] (gasoline)
     33 gal [124.9 L] (LP gas)
    Aux. fuel:2 gal [7.6 L]


    3-Point Hitch:

    Rear Type:II (optional)


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPM:540


    Dimensions & Tires:

    Wheelbase:90 inches [228 cm]
    Weight:4,960 lbs [2249 kg]
    Front tire:5.50-16
    Rear tire:12.4-36
    full dimensions and tires ...


    John Deere 530 attachments:

     front-end loader
    all 530 attachments ...


    530 Serial Numbers:

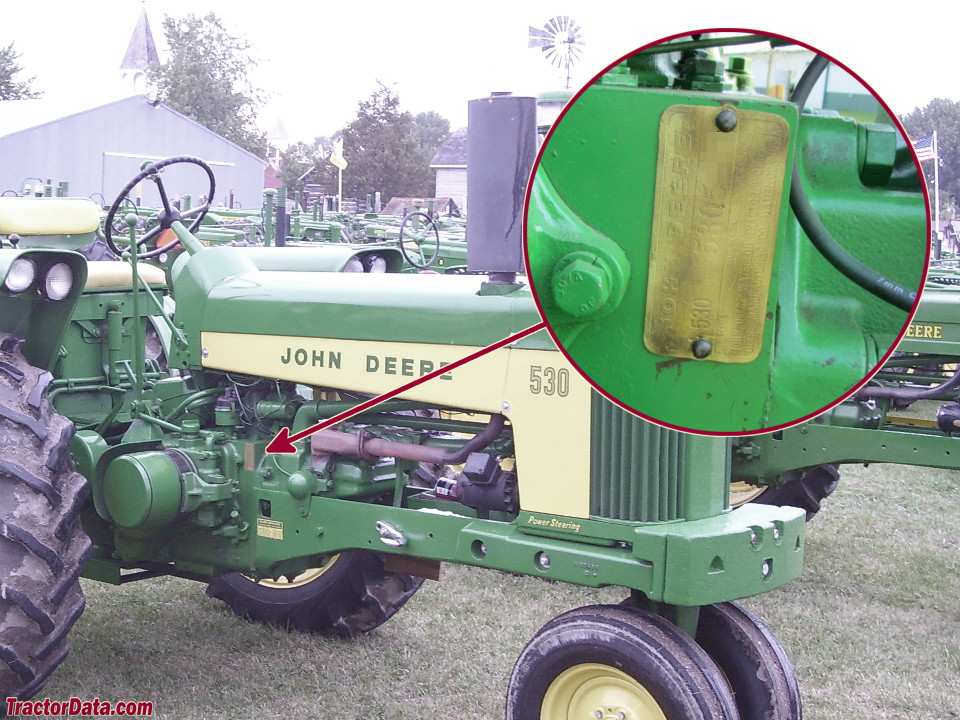

    Location:Right side of tractor frame near pulley
    photo of 530 serial number

    1958: 5300000
    1959: 5301671
    1960: 5307749
    Last: 5309814

    how to read serial numbers...



    John Deere 530 Power:

    Drawbar (claimed):34.3 hp [25.6 kW]
    PTO (claimed):38.6 hp [28.8 kW]
    Drawbar (tested):33.30 hp [24.8 kW]
    Belt (tested):37.52 hp [28.0 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Brakes:differential mechanical expanding shoe
    Cab:Open operator station


    Electrical:

    Ground:positive


    Battery:

    Number:2
    Volts:6
