John Deere 530 Tests


John Deere 530 tractor photo
1958 - 1960
Two-Cylinder 30 Series
Row-Crop tractor
520
Series:430530630
Nebraska Tractor Test 590

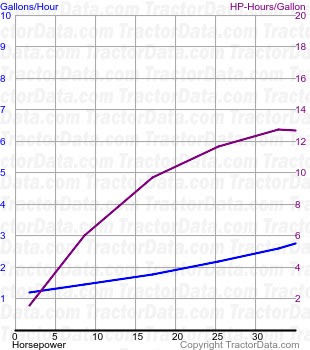

530 fuel use from test 590
Nebraska Tractor Test 590
LP gas 6-speed 2WD
September 5 - 11, 1956
Link: Nebraska Tractor Test 590 file
Belt power (max):37.24 hp
27.8 kW
Belt fuel use (max):3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power:33.30 hp
24.8 kW
Gear 4 used for power test.
Max pull:4,659 lbs
2113 kg
Gear 1 used for pull test.
Nebraska Tractor Test 592

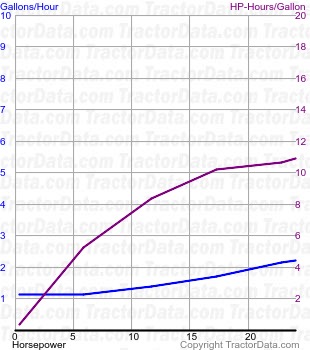

530 fuel use from test 592
Nebraska Tractor Test 592
Tractor fuel 6-speed 2WD
September 13 - 17, 1956
Link: Nebraska Tractor Test 592 file
Belt power (max):25.41 hp
18.9 kW
Belt fuel use (max):2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power:23.98 hp
17.9 kW
Gear 3 used for power test.
Max pull:4,660 lbs
2113 kg
Gear 1 used for pull test.
Nebraska Tractor Test 597

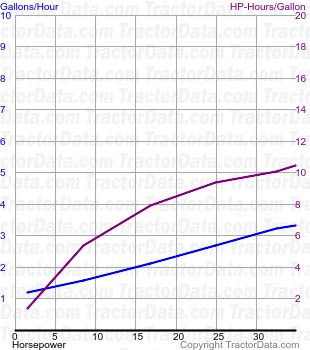

530 fuel use from test 597
Nebraska Tractor Test 597
Gasoline 6-speed 2WD
October 61956, - October 10, 1956
Link: Nebraska Tractor Test 597 file
Belt power (max):37.52 hp
28.0 kW
Belt fuel use (max):3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power:33.27 hp
24.8 kW
Gear 4 used for power test.
Max pull:4,723 lbs
2142 kg
Gear 2 used for pull test.
