Tractors > John Deere > 620

John Deere 620 - tests

John Deere 620 tractor photo
1956 - 1958   Two-Cylinder 20 Series
Row-Crop tractor
Previous model:John Deere 60
Next model:John Deere 630
Series next:John Deere 720
Series back:John Deere 520
more John Deere 620 specifications...






Nebraska Tractor Test 591:

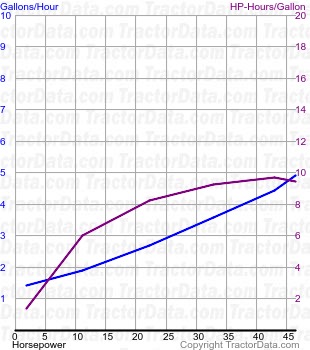

620 fuel use from test 591
Test Date:September 6 - 11, 1956
Type:LP gas 6-speed 2WD
Belt power (max):49.19 hp [36.7 kW]
Belt fuel use (max):5.2 gal/hour [19.7 l/hour]
Drawbar power (max):44.81 hp [33.4 kW]
Drawbar pull (max):5,920 lbs [2685 kg]
Max pull gear:2
Test report:PDF file


Nebraska Tractor Test 598:

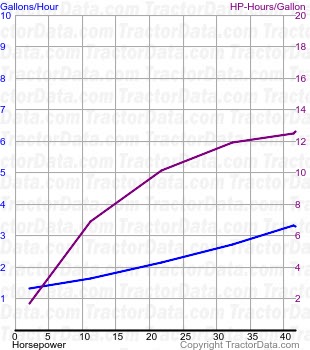

620 fuel use from test 598
Test Date:October 10 - 15, 1956
Type:Gasoline 6-speed 2WD
Belt power (max):46.75 hp [34.9 kW]
Belt fuel use (max):4.2 gal/hour [15.9 l/hour]
Drawbar power (max):42.40 hp [31.6 kW]
Drawbar pull (max):6,122 lbs [2776 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 604:

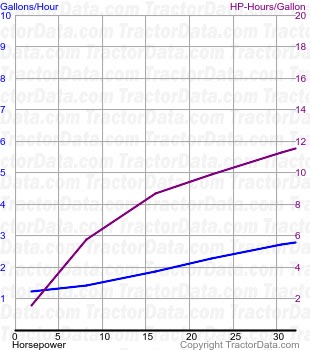

620 fuel use from test 604
Test Date:November 1 - 8, 1956
Type:Tractor fuel 6-speed 2WD
Belt power (max):34.57 hp [25.8 kW]
Belt fuel use (max):3.4 gal/hour [12.9 l/hour]
Drawbar power (max):32.37 hp [24.1 kW]
Drawbar pull (max):6,107 lbs [2770 kg]
Max pull gear:1
Test report:PDF file
