John Deere 70 Transmission

John Deere 70 tractor photo
1953 - 1956
Row-Crop tractor
Manufacturer:John Deere
Type:unsynchronized gear
Gears:6 forward and 1 reverse
Clutch:dry disc
Three gears, plus reverse, in two ranges. Reverse is available in both direct (high) and underdrive (low) although Deere only advertised the use of reverse in low range. Use of reverse in high range may be dangerously fast.
With 12-38 rear tires.

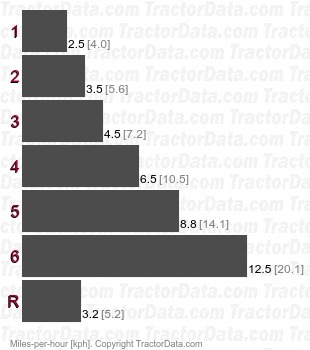

70  unsynchronized gear speeds

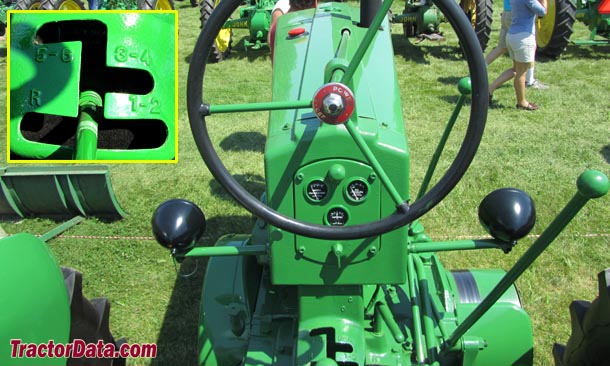

John Deere 70  transmission photo
