John Deere LA


John Deere LA tractor photo
1941 - 1946
Two-Cylinder Letter Series
Utility tractor
Series map:
L
LA
10.3hp*
14.4hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
Utility tractor
Built in Moline, Illinois, USA
The John Deere model LA was a larger version of the model L. The LA featured a larger engine with increased RPMs.
John Deere LA Engine
John Deere 1.3L 2-cyl gasoline
Fuel tank8 gal
30.3 L
Engine details ...
John Deere LA Power
Drawbar (claimed)10.46 hp
7.8 kW
Belt (claimed)12.93 hp
9.6 kW
Plows1 (16-inch)
Drawbar (tested)13.10 hp
9.8 kW
Belt (tested)14.34 hp
10.7 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station with steel pan seat.
Dimensions & Tires
Weight2,200 lbs
997 kg
Front tire5.00-15
Rear tire8.00-24
Full dimensions and tires ...

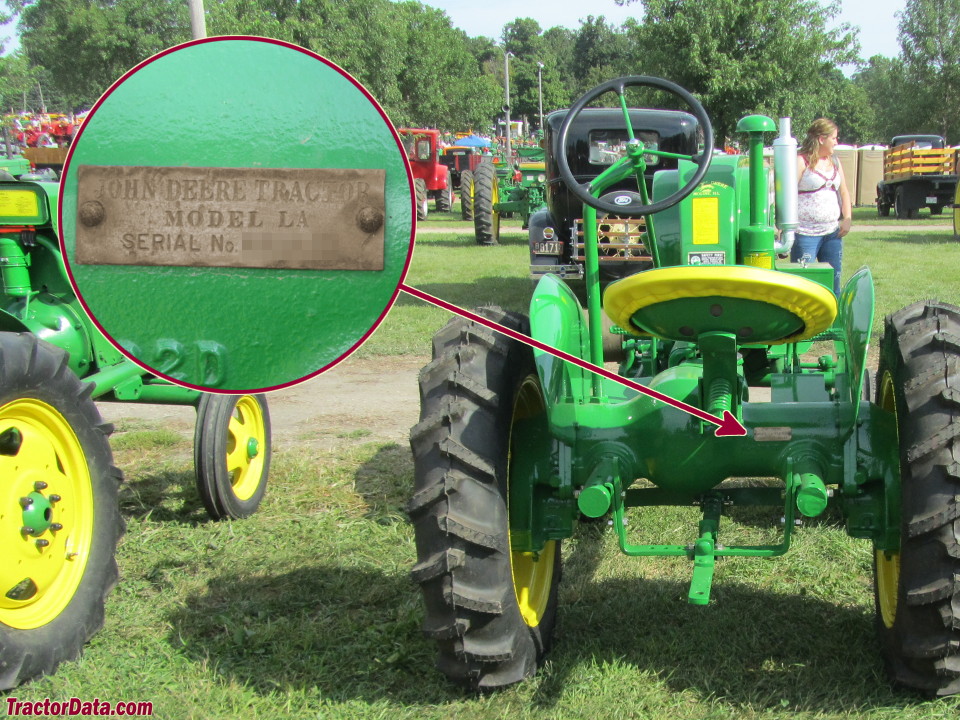

LA Serial Number Location
John Deere LA serial number location
Back of rear axle on right side.
LA Serial Numbers
19411001
19425361
19436029
19446159
19459732
194611529
Final13475

FAQ: How to read a serial number table.
Electrical
Groundpositive
Battery volts6
References
LA references literature
The John Deere Styled "Letter" Series by J.R. Hobbs
Tractors 1918-1976 published by John Deere*
General Catalog published in 1940, by John Deere
Models "L" and "LA" General-Purpose Tractors published in 1941, by John Deere
The New, More Powerful Model "LA" published in 1940, by John Deere
*Publication contains known errors.
