    Allis Chalmers D12

    Allis Chalmers D12 tractor photo
    1959 - 1968   D Series
    Row-Crop tractor
    Smaller:Allis Chalmers D10






    Production:

    Manufacturer:Allis Chalmers
    Factory:West Allis, Wisconsin, USA
    Original price (USD):$3,522 (1968)


    Variants:

    D12 High Clearance:cultivation tractor
    D10:single-row tractor


    Allis Chalmers D12 Engines:

       Allis-Chalmers 2.3L 4-cyl gasoline
       Allis-Chalmers 2.4L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:12.5 gal [47.3 L]


    Rear Hitch:

    Type:Snap-Couple


    3-Point Hitch:

    Rear Type:I


    Power Take-off (PTO):

    Rear RPM:540


    Dimensions & Tires:

    Wheelbase:78.75 inches [200 cm]
    Weight:2800 to 5630 pounds
    Front tire:5.00x15
    Rear tire:10x24
    full dimensions and tires ...

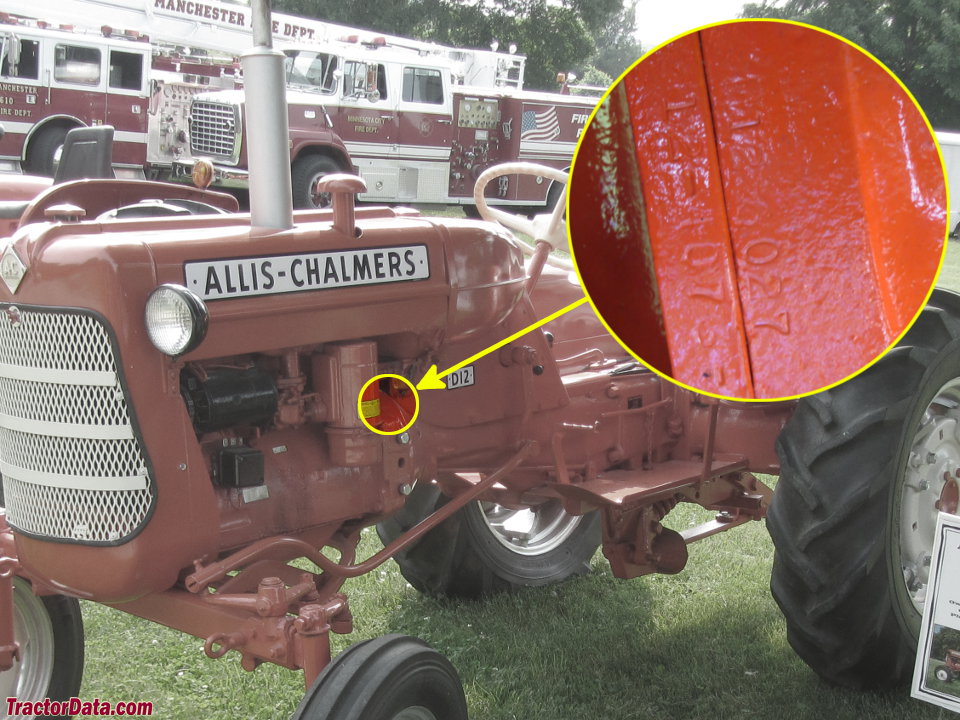

    D12 Serial Numbers:

    Location:Torque housing
    1959: 1001
    1960: 1950
    1961: 2801
    1962: 3638
    1963: 5501
    1964: 6012
    1965: 9192
    1966: 9508
    1967: 9830

    how to read serial numbers...



    Allis Chalmers D12 Power:

    Engine:31 hp [23.1 kW]
    Drawbar (claimed):25.75 hp [19.2 kW]
    PTO (claimed):30 hp [22.4 kW]
    Drawbar (tested):29.43 hp [21.9 kW]
    PTO (tested):33.32 hp [24.8 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Cab:Open operator station.


    Hydraulics:

    Type:live
    Valves:1 or 2


    Belt Pulley:

    RPM:1220
    Speed:2556 ft/min [779.07 meters/min]


    Battery:

    Number:1
    Volts:6
