Tractors > Allis Chalmers > D12

Allis Chalmers D12 Tests



Allis Chalmers D12 tractor photo
1959 - 1968
D Series
Row-Crop tractor
Series map:
D10
D12
31.0hp
31.0hp
Nebraska Tractor Test 723

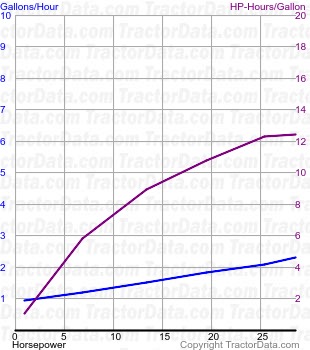

D12 fuel use from test 723
Nebraska Tractor Test 723
138 gasoline 4-speed 2WD
October 13 - 20, 1959
Link: Nebraska Tractor Test 723 file
PTO performance
Power at rated engine speed28.56 hp
21.3 kW
Fuel use2.3 gal/hour
8.7 l/hour
Drawbar performance
Max power23.56 hp
17.6 kW
Fuel use2.2 gal/hour
8.3 l/hour
Gear 3 used for power test.
Max pull4,041 lbs
1832 kg
Gear 1 used for pull test.
Nebraska Tractor Test 813

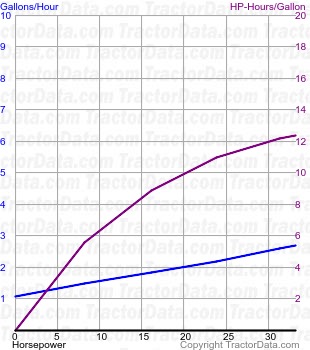

D12 fuel use from test 813
Nebraska Tractor Test 813
149 gasoline 4-speed 2WD
April 4 - 19, 1962
Link: Nebraska Tractor Test 813 file
PTO performance
Power at rated engine speed33.32 hp
24.8 kW
Fuel use2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power29.43 hp
21.9 kW
Fuel use2.8 gal/hour
10.6 l/hour
Gear 3 used for power test.
Max pull4,241 lbs
1923 kg
Gear 1 used for pull test.
