    Allis Chalmers D10

    Allis Chalmers D10 tractor photo  I&T Manual: Allis-Chalmers D-10, D-12, D-14, D-15, D-17, 160, 170, 175
    I&T Shop Manual
    1959 - 1967   D Series
    Row-Crop tractor
    Larger:Allis Chalmers D12






    Production:

    Manufacturer:Allis Chalmers
    Factory:West Allis, Wisconsin, USA
    Total built:9,100
    Original price (USD):$3400 (1967)


    Variants:

    D10 High Clearance:cultivation tractor
    D12:two-row tractor


    Allis Chalmers D10 Engines:

       Allis-Chalmers 2.3L 4-cyl gasoline
       Allis-Chalmers 2.4L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:12 gal [45.4 L]


    Rear Hitch:

    Type:Snap-Couple


    3-Point Hitch:

    Rear Type:I


    Power Take-off (PTO):

    Rear PTO:transmission (original), independent (later)
    Rear RPMs:540


    Dimensions & Tires:

    Wheelbase:78.75 inches [200 cm]
    Weight:2700 to 4800 pounds
    Front tire:4.00x15
    Rear tire:9x24
    full dimensions and tires ...

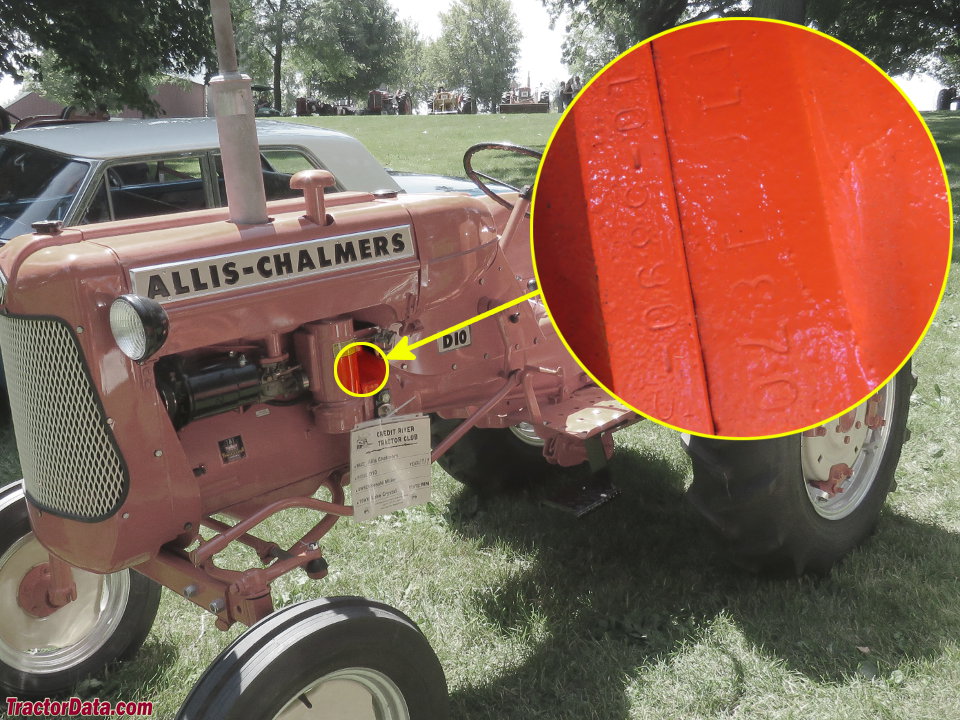

    D10 Serial Numbers:

    Location:Torque housing
    1959: 1001
    1960: 1950
    1961: 2801
    1962: 4511
    1963: 6801
    1964: 7675
    1965: 9204
    1966: 9486
    1967: 9795

    how to read serial numbers...



    Allis Chalmers D10 Power:

    Engine:31 hp [23.1 kW]
    Drawbar (claimed):26 hp [19.4 kW]
    PTO (claimed):30.1 hp [22.4 kW]
    Drawbar (tested):28.78 hp [21.5 kW]
    PTO (tested):33.46 hp [25.0 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:differential mechanical shoe
    Cab:Open operator station


    Hydraulics:

    Type:live
    Valves:1 or 2


    Belt Pulley:

    RPMs:1220
    Speed:2556 ft/min [779.07 meters/min]


    Battery:

    Number:1
    Volts:6
     12 (late)
