Allis Chalmers WF
|
|
| Production | |
| Manufacturer | Allis Chalmers |
| Standard-tread tractor | |
| Built in West Allis, Wisconsin, USA | |
| Original price was $1,340 in 1951 | |
| Allis Chalmers WF Engine | |
| Allis Chalmers 3.3L 4-cyl gasoline | |
| Fuel tank | 15 gal 56.8 L |
| Aux. fuel | 1 gal 3.8 L |
 Engine details ... | |
| Allis Chalmers WF Transmission | |
| 4-speed gear | |
 Transmission details ... |
| Allis Chalmers WF Power | |
| PTO (claimed) | 22 hp 16.4 kW |
| Plows | 2 *14-inch |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
 | |
 Allis Chalmers WF photos... | |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 70 inches 177 cm |
| Weight | 3175 lbs 1440 kg |
| Front tire | 5.5x16 |
| Rear tire | 11.25x24 |
 Full dimensions and tires ... | |
| WF Serial Number Location | |
 | |

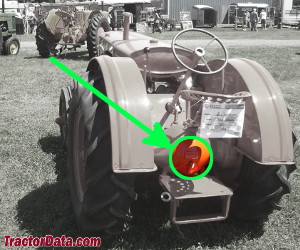

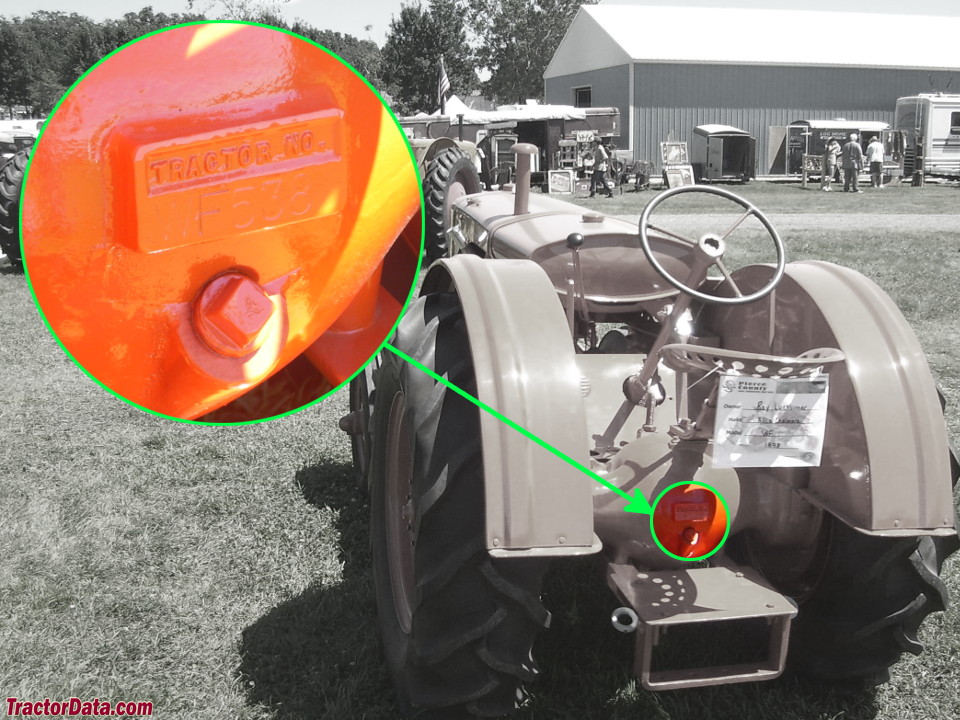

| Serial number on the rear of the Allis-Chalmers WF, stamped into the differential housing. |
| WF Serial Numbers | |
| 1938 | 389 |
| 1939 | 1336 |
| 1940 | 1892 |
| 1941 | 2300 |
| 1942 | 2704 |
| 1943 | None |
| 1944 | 3004 |
| 1945 | 3195 |
| 1946 | 3510 |
| 1947 | 3748 |
| 1948 | 4111 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 9 inches 22 cm |
| Width | 6.5 inches 16 cm |
| RPM | 1170 |
| Speed | 2760 ft/min 841.25 meters/min |
| References | |
 | |
| Build a Better Farm published in 1940, by Allis Chalmers |
