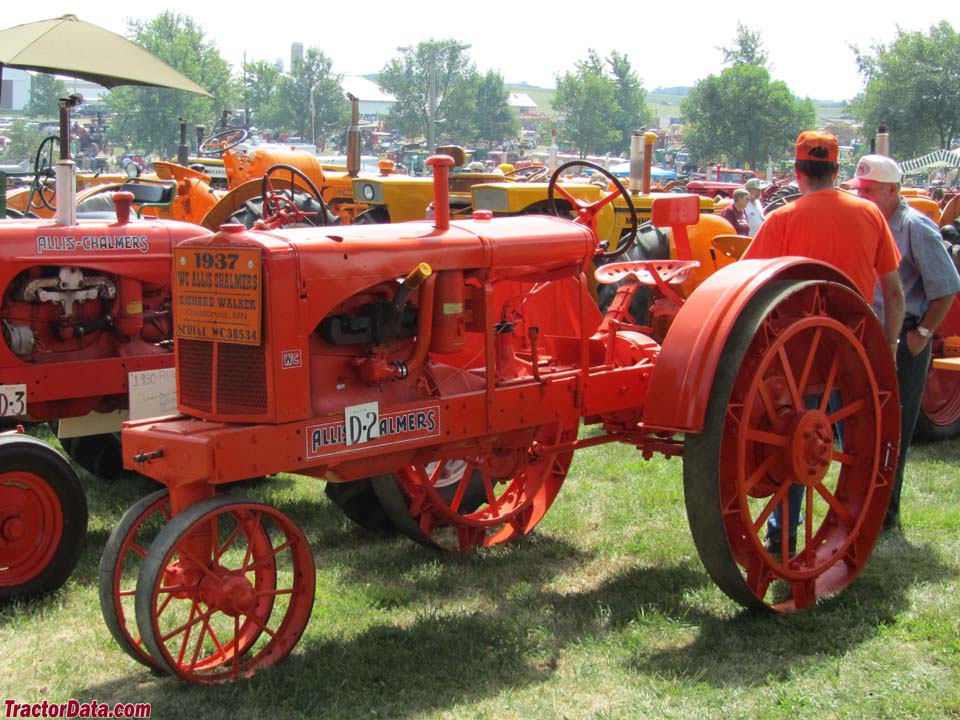

    Allis Chalmers WC

    Allis Chalmers WC tractor photo  I&T Manual: Allis-Chalmers B, C, CA, G, RC, WC, WD, WD45, WF
    I&T Shop Manual
    1933 - 1948
    Row-Crop tractor
    Next model:Allis Chalmers WD





    The Allis-Chalmers WC was the first tractor tested on rubber tires at Nebraska. The WC was styled in 1938, starting at serial number WC74330. The styled WC featured a rounded radiator and larger tires.


    Production:

    Manufacturer:Allis Chalmers
    Factory:West Allis, Wisconsin, USA
    Total built:178,202
     411 (Speed Maintainer)
     3,751 (Speed Patrol)
    Original price (USD):$1,341 (1947)


    Variants:

    WC Speed Maintainer:1938-1941
    WC Speed Patrol:1945-1950
    WF:Standard (wide) front version


    Allis Chalmers WC Engines:

       Waukesha 3.0L 4-cyl gasoline
       Allis-Chalmers 3.3L 4-cyl distillate
       Allis-Chalmers 3.3L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:15 gal [56.8 L]
    Aux. fuel:1 gal [3.8 L]


    Power Take-off (PTO):

    Rear PTO:transmission
    Rear RPMs:535


    Dimensions & Tires:

    Weight:2700 to 4545 pounds
    Front tire:24x4
    Rear tire:40x6
    full dimensions and tires ...

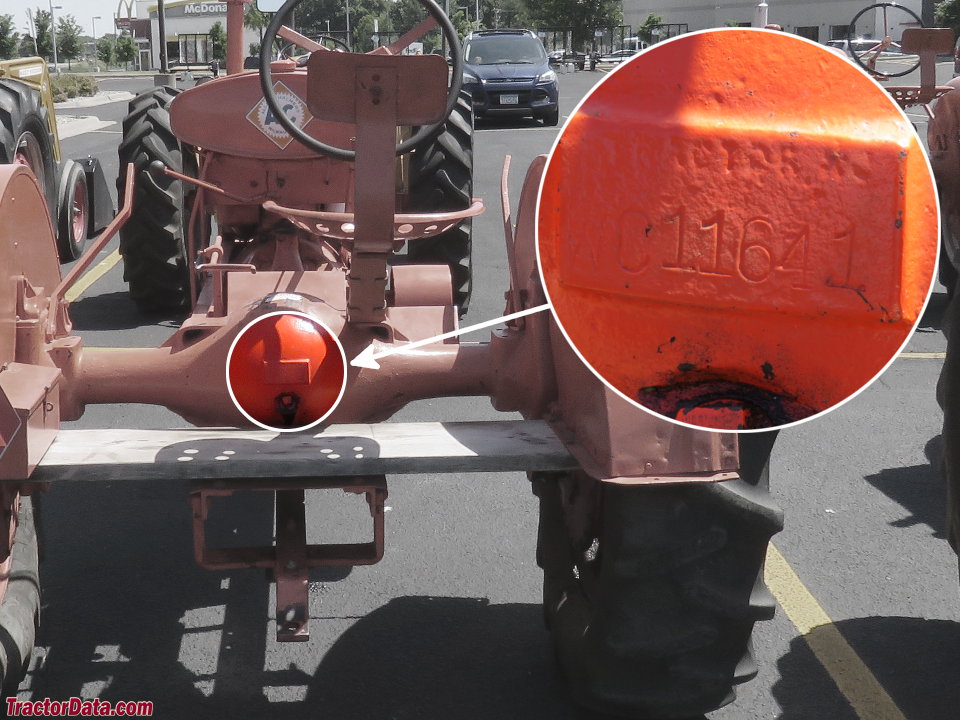

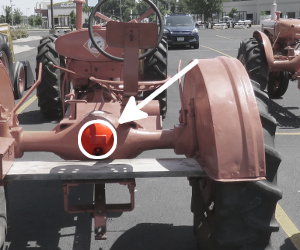

    WC Serial Numbers:

    Location:Differential housing
    1933: 1
    1934: 29
    1935: 3127
    1936: 13870
    1937: 31784
    1938: 60790
    1939: 75216
    1940: 91534
    1941: 103517
    1942: 114534
    1943: 123171
    1944: 127642
    1945: 134624
    1946: 148091
    1947: 152845
    1948: 170174
    Final: 178202

    how to read serial numbers...



    Allis Chalmers WC Power:

    Drawbar (claimed):12 hp [8.9 kW] - 18
    Belt (claimed):21 hp [15.7 kW] - 27
    Plows:2
    Drawbar (tested):22.29 hp [16.6 kW]
    Belt (tested):29.93 hp [22.3 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:differential hand-operated mechanical drum
    Cab:Open operator station with steel pan seat.


    Belt Pulley:

    Diameter:9 inches [22 cm]
    Width:6.5 inches [16 cm]
    RPMs:1170


    Electrical:

    Charging system:generator


    Battery:

    Number:1
    Volts:6
    Amp-hours:95
