    Allis Chalmers WC - transmission

    Allis Chalmers WC tractor photo I&T Manual: Allis-Chalmers B, C, CA, G, RC, WC, WD, WD45, WF
    I&T Shop Manual
    1933 - 1948
    Row-Crop tractor
    Next model:Allis Chalmers WD
    more Allis Chalmers WC specifications...






    Transmission:

    Type:non-synchronized gear
    Gears:4 forward and 1 reverse
    Oil capacity:4 qts [3.8 L]
     5 qts [4.7 L] (with PTO)
    Oil type:
    32oF [0oC]↑ : SAE140
    32oF [0oC]↓ : SAE90

    Operated via gearshift lever and foot clutch. Fourth gear was not recommended for tractors equipped with steel wheels.

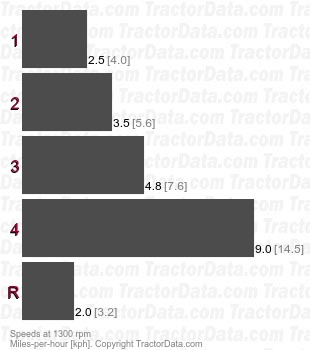

    Speeds:
    WC non-synchronized gear speeds
