Allis Chalmers WC Engine
|
|
| Engines overview | |
| Waukesha 3.0L 4-cyl gasoline | |
| Allis-Chalmers 3.3L 4-cyl distillate | |
| Allis-Chalmers 3.3L 4-cyl gasoline |
| Engine Detail | |
| Waukesha | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Used on first 25 tractors built | |
| Displacement | 186 ci 3.0 L |
| Bore/Stroke | 3.625x4.50 inches 92 x 114 mm |
| Starter type | manual crank |
| Engine Detail | |
| Allis-Chalmers | |
| distillate | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Low-compression engine designed to operate on fuels rated at 30 octane or higher. | |
| Displacement | 201 ci 3.3 L |
| Bore/Stroke | 4.00x4.00 inches 102 x 102 mm |
| Fuel use | 2.119 gal/hour 8.0 l/hour |
| Air cleaner | oil bath |
| Compression | 4.2:1 |
| Rated RPM | 1300 |
| Firing order | 1-2-4-3 |
| Starter type | manual crank |
| electric | |
| Coolant capacity | 14 qts 13.2 L |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.010 inches (hot) 0.254 mm |
| Exhaust valve clearance | 0.010 inches (hot) 0.254 mm |

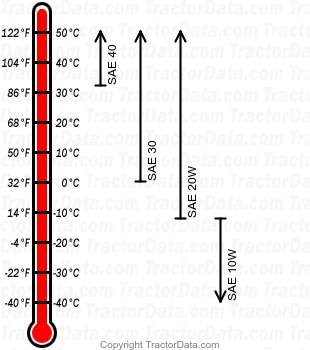

| Engine Oil | |
| |
| Oil capacity | 6 qts 5.7 L |
| Engine Detail | |
| Allis-Chalmers | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement | 201 ci 3.3 L |
| Bore/Stroke | 4.00x4.00 inches 102 x 102 mm |
| Fuel use | 2.861 gal/hour 10.8 l/hour |
| Air cleaner | oil bath |
| Compression | 5.0:1 |
| Rated RPM | 1300 |
| Firing order | 1-2-4-3 |
| Starter type | manual crank |
| electric | |
| Coolant capacity | 14 qts 13.2 L |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.010 inches (hot) 0.254 mm |
| Exhaust valve clearance | 0.010 inches (hot) 0.254 mm |
| Engine Oil | |
| |
| Oil capacity | 6 qts 5.7 L |
