Allis Chalmers G
|
|
| Production | |
| Manufacturer | Allis Chalmers |
| Tool Carrier tractor | |
| Built in Gadsden, Alabama, USA | |
| Total built | 29,976 |
| Original price was $970 in 1955 | |
| The Allis-Chalmers G was designed for small farms and gardens. The small, rear-engine machine was more like the motor cultivators of the 1920s than a tractor. It featured a full line of custom implements that mounted under the belly. | |
| Allis Chalmers G Engine | |
| Continental 1.0L 4-cyl gasoline | |
| Fuel tank | 5 gal 18.9 L |
 Engine details ... | |
| Allis Chalmers G Transmissions | |
| 3-speed gear | |
| 4-speed creeper | |
 Transmission details ... |
| Allis Chalmers G Power | |
| Drawbar (claimed) | 10 hp 7.5 kW |
| Drawbar (tested) | 9.04 hp 6.7 kW |
| Belt (tested) | 10.33 hp 7.7 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical external expanding brakes | |
| Open operator station. |
| Photos | |
 | |
 Allis Chalmers G photos... | |
| Dimensions & Tires | |
| Wheelbase | 68.5 inches 173 cm |
| Weight | 1285 to 1400 pounds |
| Front tire | 4.00-12 |
| Rear tire | 6-30 |
 Full dimensions and tires ... | |
| G Serial Numbers | |
| Location: | Top of transmission case, rear of shift lever |
| 1948 | 6 |
| 1949 | 10961 |
| 1950 | 23180 |
| 1951 | 24006 |
| 1952 | 25269 |
| 1953 | 26497 |
| 1954 | 28036 |
| 1955 | 29036 |
| Final | 29976 |
FAQ: How to read a serial number table. | |
| Links | |
| Allis G Restoration: photos of the restoration of a 1949 AC G |
| Belt Pulley | |
| Diameter | 6 inches 15 cm |
| Width | 4 inches 10 cm |
| RPM | 1950 |
| Speed | 3063 ft/min 933.60 meters/min |
| Electrical | |
| Ground | positive |
| Charging system | generator |
| Battery volts | 6 |

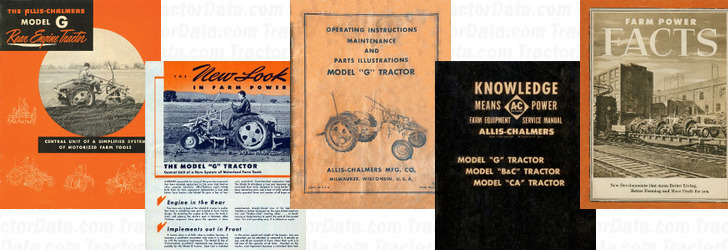

| References | |
 | |
| Model G Rear Engine Tractor published in 1950, by Allis Chalmers | |
| The Model G Tractor published in 1948, by Allis Chalmers | |
| Operating Instructions Model G Tractor (TM-4A) | |
| Farm Equipment Service Manual (SM-3) | |
| Farm Power Facts published in 1954, by Allis Chalmers |
