Tractors > Allis Chalmers > G

Allis Chalmers G Transmission



Allis Chalmers G tractor photo
1948 - 1955
Tool Carrier tractor
Transmissions overview
3-speed gear
4-speed creeper
Transmission
Typegear
Gears3 forward and 1 reverse
Clutch165.1mm dry disc
Oil capacity8 qts
7.6 L
Speeds

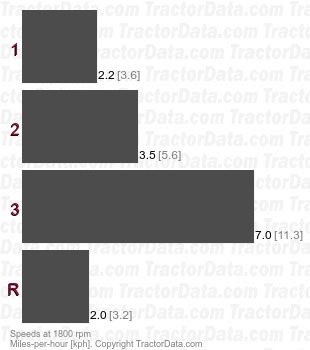

G gear speeds
Transmission
Transmissioncreeper
Typecreeper
Gears4 forward and 1 reverse
Clutch165.1mm dry disc
Oil capacity8 qts
7.6 L
Speeds

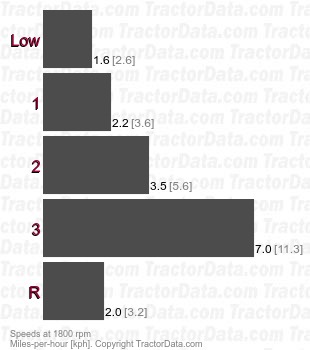

G creeper creeper speeds

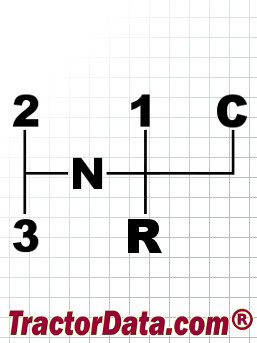

Shift Pattern
Allis Chalmers G transmission controls
