EarthForce EF-1D

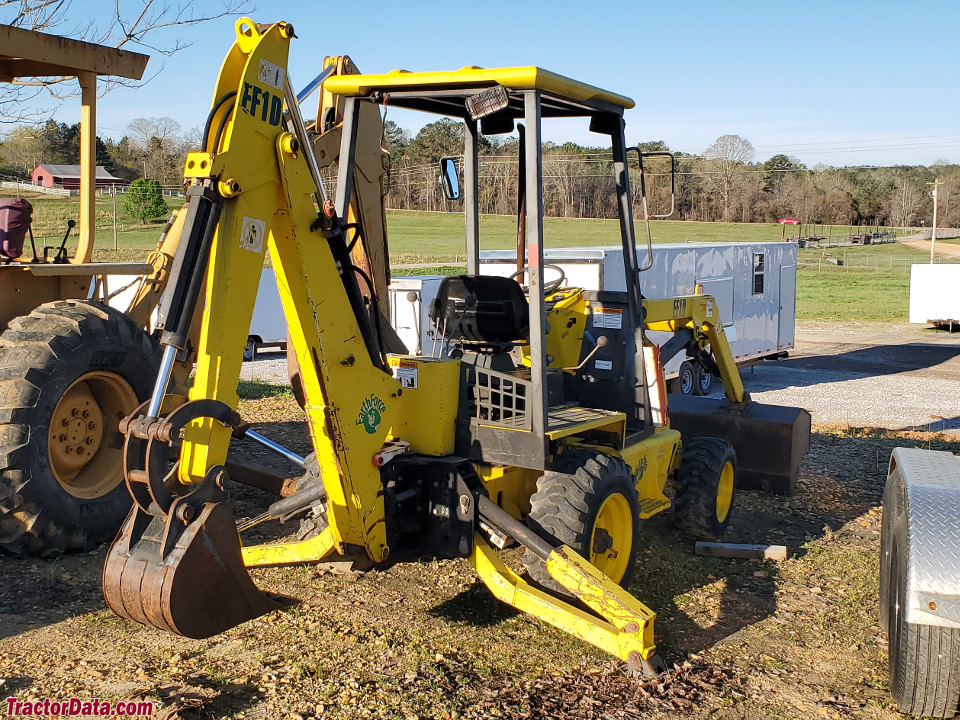

EarthForce EF-1D tractor photo
1995 - 2001
Backhoe loader tractor
Series map:
EF-1
EF-1D
EF-2
25.0hp
25.0hp
31.5hp
Production
ManufacturerEarthForce
Backhoe loader tractor
Built in Dobris, Czech Republic
Variants
EF-1gas
EF-1Ddiesel
EarthForce EF-1D Power
Engine25 hp
18.6 kW
Mechanical
Four-wheel drive
Power steering
ROPS/FOPS. Cab optional with available heater.
Capacity
Fuel14.5 gal
54.9 L
Hydraulic system13.4 gal
50.7 L
Hydraulics
Typeopen center
Capacity13.4 gal
50.7 L
Dimensions & Tires
Wheelbase64 inches
162 cm
Weight4279 lbs
1940 kg
Front tire23x8.5-12
Rear tire10.0/75-15.3
Full dimensions and tires ...
Backhoe & Loader
Dig depth108 inches
274 cm
Dump angle38 inches
96 cm
Loader/Backhoe details ...
Electrical
Groundnegative
Battery volts12
References
EF-1D references literature
Backhoe Loaders - Built for the way you work published in 1999, by EarthForce
