Tractors > Kubota > M62 backhoe-loader

Kubota M62

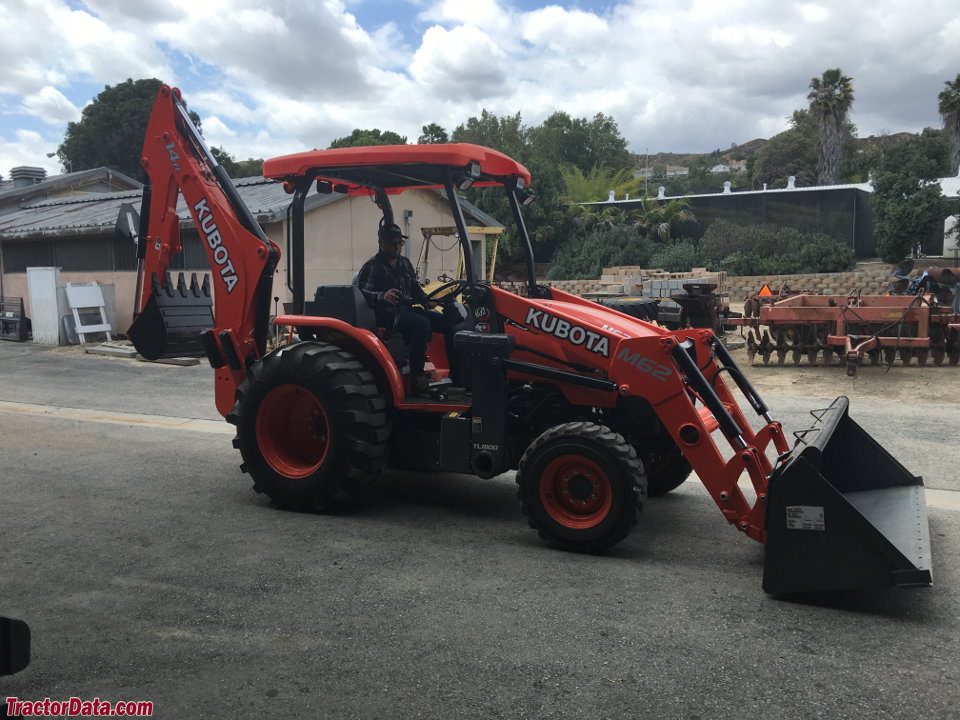

Kubota M62 backhoe photo
2016 -
Backhoe loader tractor
Previous model:Kubota M59






Production:

Manufacturer:Kubota
Original price (USD)
   $64,346 (2016 )


Kubota M62 Engine:

   Kubota 2.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:17.7 gal [67.0 L]


3-Point Hitch:

Rear Type:II/I*Optional
Control:position control
Rear lift (at 24"/610mm):2796 lbs [1268 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540


Dimensions & Tires:

Wheelbase:80.7 inches [204 cm]
Weight:8925 lbs [4048 kg]
Front tire:10x16.5
Rear tire:17.5L-24
full dimensions and tires ...


Backhoe & Loader:

Dig depth:169.8 inches [431 cm]
Dump angle:43 inches [109 cm]
full backhoe/loader specifications ...


M62 Serial Numbers:


- Serial numbers unknown -



Kubota M62 Power:

Engine (gross):63 hp [47.0 kW]
Engine (net):59.1 hp [44.1 kW]
PTO (claimed):46 hp [34.3 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Four-post ROPS/FOPS.


Hydraulics:

Valves:3*Optional
SCV flow:16 gpm [60.6 lpm]
Total flow:39 gpm [147.6 lpm]
Steering flow:6.6 gpm [25.0 lpm]


Electrical:

Ground:negative
Charging system:alternator


Battery:

Volts:12
