Kubota L48

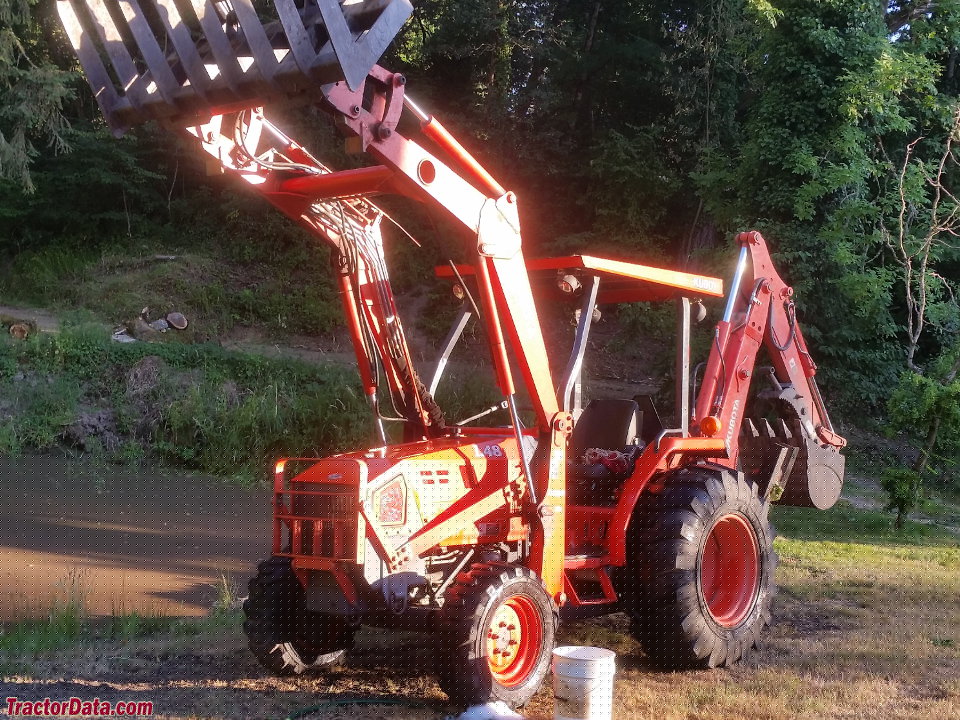

Kubota L48 backhoe photo
2000 - 2009
Backhoe loader tractor
Production
ManufacturerKubota
TypeBackhoe loader tractor
Kubota L48 Engine
Kubota 2.4L 4-cyl diesel
Fuel tank13.2 gal
50.0 L
Engine details ...
Kubota L48 Power
Engine (gross)48 hp
35.8 kW
Engine (net)48 hp
35.8 kW
PTO (claimed)37.5 hp
28.0 kW
Mechanical
Chassis4x4 MFWD 4WD
Steeringhydrostatic power
Brakeswet disc
CabFour-post FOPS canopy.
Hydraulics
Typeopen center
Pressure2800 psi
193.1 bar
Total flow25.9 gpm
98.0 lpm
Tractor hitch
Rear TypeI
Controlposition control
Rear lift (at 24"/610mm)3310 lbs
1501 kg
Power Take-off (PTO)
Rear PTOcontinuous
Rear RPM540
Dimensions & Tires
Wheelbase74 inches
187 cm
Weight7760 lbs
3519 kg
Front tire10-16.5
Rear tire17.5L-24
Full dimensions and tires ...
Backhoe & Loader
Dig depth134.6 inches
341 cm
Dump angle45 inches
114 cm
Loader/Backhoe details ...
Electrical
Groundnegative
Battery volts12
