Tractors > Kubota > M59 backhoe-loader

Kubota M59

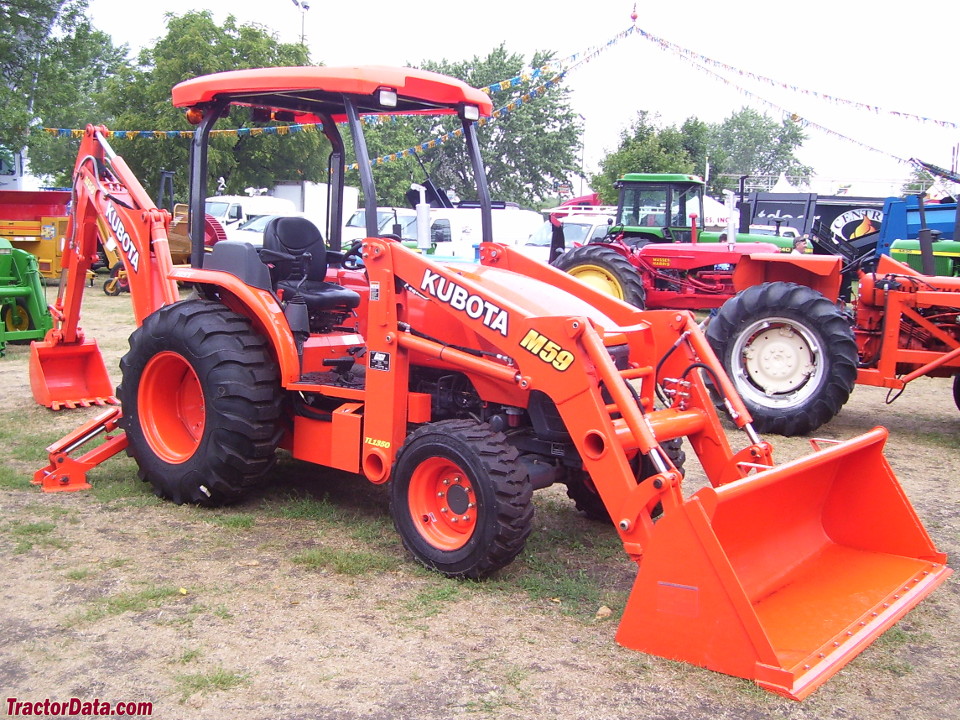

Kubota M59 backhoe photo
2008 - 2015
Backhoe loader tractor
Next model:Kubota M62






Production:

Manufacturer:Kubota
Original price (USD):$54,167 (2011)


Kubota M59 Engine:

   Kubota 2.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:14.5 gal [54.9 L]
Hydraulic system:11.9 gal [45.0 L]
Front axle:11.6 qts [11.0 L]


3-Point Hitch:

Rear Type:II/I (optional)
Rear lift (at ends):3,860 lbs [1750 kg]
Rear lift (at 24"/610mm):2,976 lbs [1349 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2550


Dimensions & Tires:

Wheelbase:80.7 inches [204 cm]
Weight:8,345 lbs [3785 kg]
Front tire:10x16.5
Rear tire:17.5L-24
full dimensions and tires ...


Backhoe & Loader:

Dig depth:144 inches [365 cm]
Dump angle:45 inches [114 cm]
full backhoe/loader specifications ...


M59 Serial Numbers:


- Serial numbers unknown -



Kubota M59 Power:

Engine (gross):59 hp [44.0 kW]
Engine (net):57 hp [42.5 kW]
PTO (claimed):46 hp [34.3 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:hydrostatic power
Brakes:wet disc
Cab:Four-post ROPS with FOPS canopy standard.


Hydraulics:

Type:open center
Capacity:11.9 gal [45.0 L]
Rear valves:3 (optional)
Pump flow:16.1 gpm [60.9 lpm] (remotes)
 9.5 gpm [36.0 lpm] (backhoe boom)
Total flow:26.7 gpm [101.1 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:45


Battery:

Number:1
Volts:12
Amp-hours:80
