Tractors > Kubota > BX25D backhoe-loader

Kubota BX25D

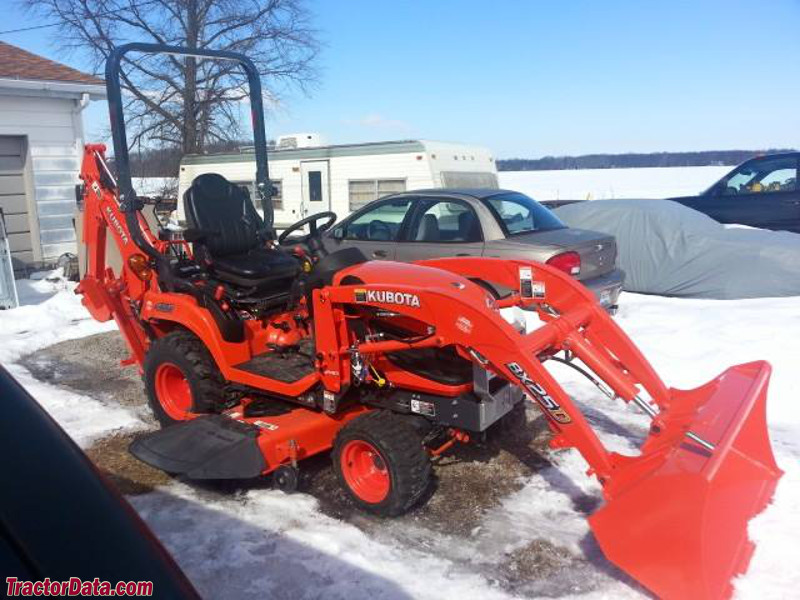

Kubota BX25D backhoe photo
2013 - 2014   BX70 Series
Backhoe loader tractor
Previous model:Kubota BX25
Next model:Kubota BX25D-1






Production:

Manufacturer:Kubota
Original price (USD)
   $19,950 (2013 )


Variants:

BX2370:tractor
BX25D:loader-backhoe


Kubota BX25D Engine:

   Kubota 0.9L 3-cyl diesel
full engine details ...


Capacity:

Fuel:6.6 gal [25.0 L]
Hydraulic system:3.1 gal [11.7 L]


3-Point Hitch:

Rear Type:I*Optional
Control:position control
Rear lift (at ends):992 lbs [449 kg]
Rear lift (at 24"/610mm):670 lbs [303 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@3068
Mid PTO:independent
Mid RPM:2500
Engine RPM:2500@3125


Dimensions & Tires:

Wheelbase:55.1 inches [139 cm]
Weight:1587 to 2475 pounds
Front tire:18x8.5-10
Rear tire:26x12-12
full dimensions and tires ...


Backhoe & Loader:

Dig depth:73 inches [185 cm]
Dump angle:45 inches [114 cm]
full backhoe/loader specifications ...


BX25D Serial Numbers:


- Serial numbers unknown -



Kubota BX25D Power:

Engine (gross):23 hp [17.2 kW]
PTO (claimed):17.5 hp [13.0 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Optional canopy.


Hydraulics:

Type:open center
Capacity:3.1 gal [11.7 L]
Pump flow:6.2 gpm [23.5 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:40


Battery:

Number:1
Cold-cranking amps:535
Volts:12
