John Deere 110TLB
|
|
| Production | |
| Manufacturer | John Deere |
| Backhoe loader tractor | |
| John Deere 110TLB Engine | |
| Yanmar 2.2L 4-cyl diesel | |
 Engine details ... |
| John Deere 110TLB Power | |
| Engine | 41 hp 30.6 kW |
| PTO (claimed) | 33 hp 24.6 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Mechanical wet disc brakes | |
| Four-post ROPS. |
| Photos | |
 | |
 John Deere 110TLB photos... | |
| Capacity | |
| Fuel | 15.3 gal 57.9 L |
| Hydraulic system | 15 gal 56.8 L |
| Hydraulics | |
| Type | open center |
| Capacity | 15 gal 56.8 L |
| Pressure | 3000 psi 206.8 bar |
| Total flow | 23.6 gpm 89.3 lpm |
| 12.2 gpm (loader) 46.2 lpm | |
| 16.3 gpm (backhoe) 61.7 lpm | |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at ends) | 3,130 lbs 1419 kg |
| Rear lift (at 24"/610mm) | 2,500 lbs 1134 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 71.5 inches 181 cm |
| Weight | 7600 lbs 3447 kg |
| Front tire | 10x16.5 |
| Rear tire | 17.5x24 |
 Full dimensions and tires ... | |
| Backhoe & Loader | |
| Dig depth | 121 inches 307 cm |
| Dump angle | 45 inches 114 cm |
 Loader/Backhoe details ... | |

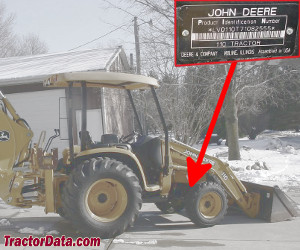

| 110TLB Serial Number Location | |
 | |
| Serial number plate on the right side of the 110TLB frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 40 |
| 55 OptOptional | |
| Battery CCA | 770 |
| Battery volts | 12 |
| References | |
 | |
| 110 Tractor Loader Backhoe published in 2002, by John Deere | |
| 110 Compact Tractor Loader Backhoe published in 2008, by John Deere | |
| Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere | |
| 4000 TEN Series Product Information Handbook published in 2003, by John Deere |
