| | 2003 - 2007 |
| ZTX Series | | Row-Crop tractor |
|
Series map:
ZTX230
ZTX260
230.0hp
260.0hp
| Engine Detail |
| Cummins QSC |
| turbocharged intercooled diesel |
| 6-cylinder |
| liquid-cooled inline |
| Displacement | 504.5 ci
8.3 L
|
| Bore/Stroke | 4.49x5.31 inches
114 x 135 mm
|
| Power | 230 hp
171.5 kW
|
| Rated RPM | 2200
|
| Torque | 664 lb-ft
900.4 Nm
|
| Torque RPM | 1200
|
| Starter type | electric
|

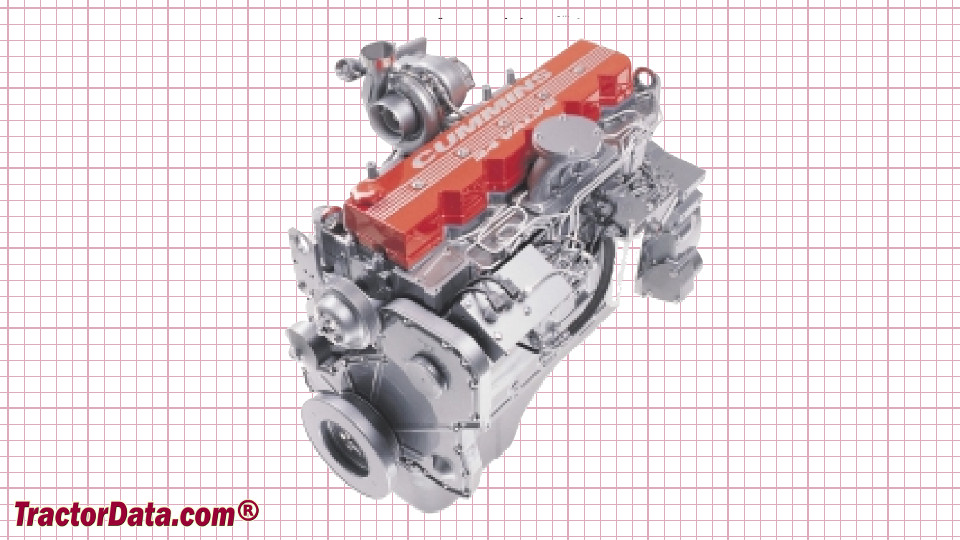

| McCormick Intl ZTX230 Engine |
 |
